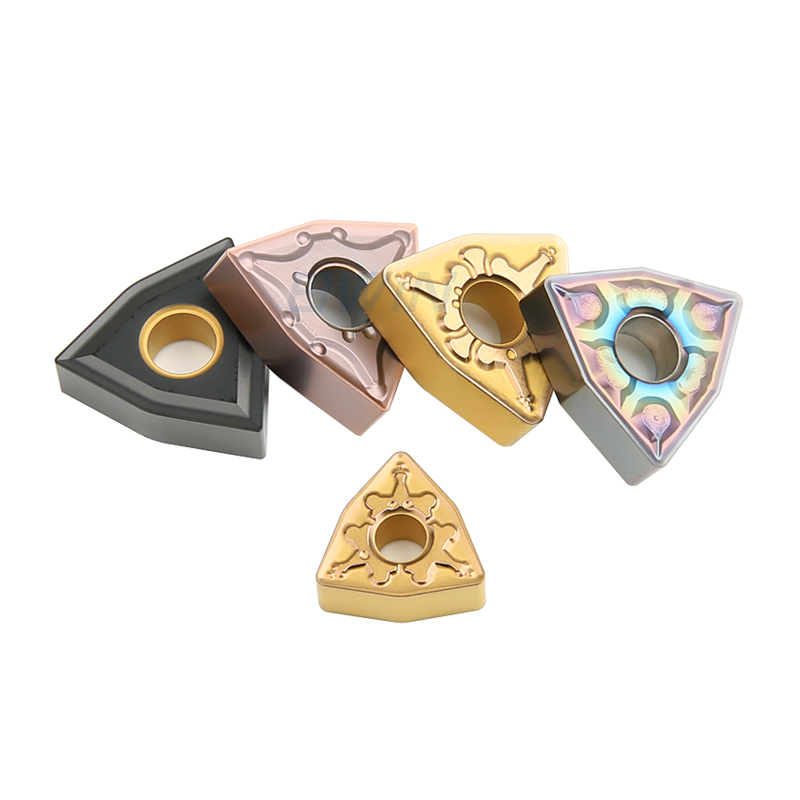

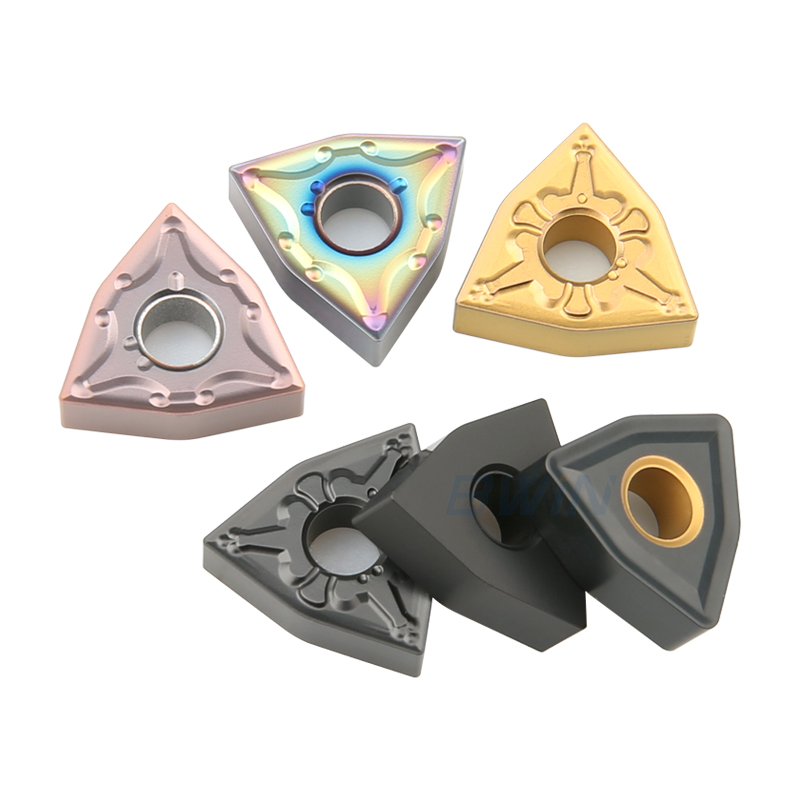

WNMG Inserts WNMG080404 WNMG080408 WNMG080412 Carbide Turning Inserts for Steel
- Brand: Bwin
- Material: Solid carbide
- Insert Style: WNMG
- Insert Grade: BP020, BP025, BP050, BT015, BM035, BM085, BK115
- Insert Shape and Angle: 80°
- Package: 10pcs/box
- Machining Parts Material: Carbon steel, alloy steel, stainless steel, hardened steel, cast iron, etc
- Country of Origin: China
WNMG inserts deliver consistent performance in a wide range of turning applications. They feature a strong cutting edge that improves wear resistance and ensures stable machining. As a result, users can maintain steady cutting performance even under heavy load conditions. Moreover, these carbide turning inserts help reduce vibration and improve surface finish quality.
In addition, WNMG inserts work effectively on carbon steel, alloy steel, stainless steel, and cast iron. Their optimized geometry enhances chip control and reduces cutting resistance. Furthermore, the inserts support multiple cutting operations, including roughing and finishing. Because of this, machinists can achieve both efficiency and precision in CNC turning tasks.
These WNMG08 and WNMG06 series inserts also offer excellent compatibility with standard tool holders. Users can choose from sizes such as WNMG080404, WNMG080408, WNMG080412, WNMG060404, and WNMG060408 to match different machining needs. Therefore, these WNMG inserts provide a flexible and cost-effective solution for modern machining environments.

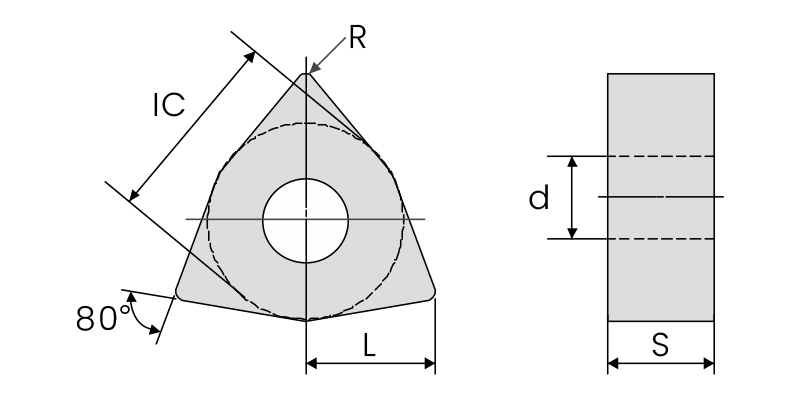

Turning Inserts WNMG Demensions:
| Model | L | IC | S | d | R |
| WNMG060404 | 6.5 | 9.525 | 4.76 | 3.81 | 0.4 |
| WNMG060408 | 6.5 | 9.525 | 4.76 | 3.81 | 0.8 |
| WNMG080404 | 8.7 | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408 | 8.7 | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412 | 8.7 | 12.7 | 4.76 | 5.16 | 1.2 |
Bwin Grade for Carbide Inserts:
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys. | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P30-P40 | Suitable for processing variou steel parts and cast iron. |
| BC075 | Uncoated | Black | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
| BC090 | Uncoated | Yellow | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
