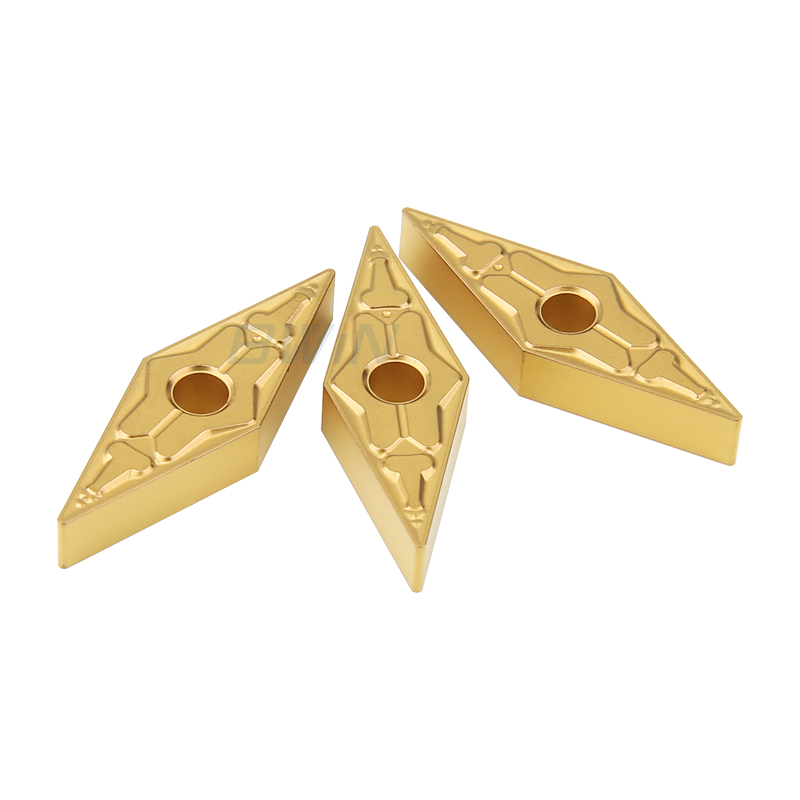

VNMG Inserts VNMG160404 VNMG160408 Carbide Turning Inserts for Steel
- Brand: Bwin
- Material: Solid carbide
- Insert Style: VNMG

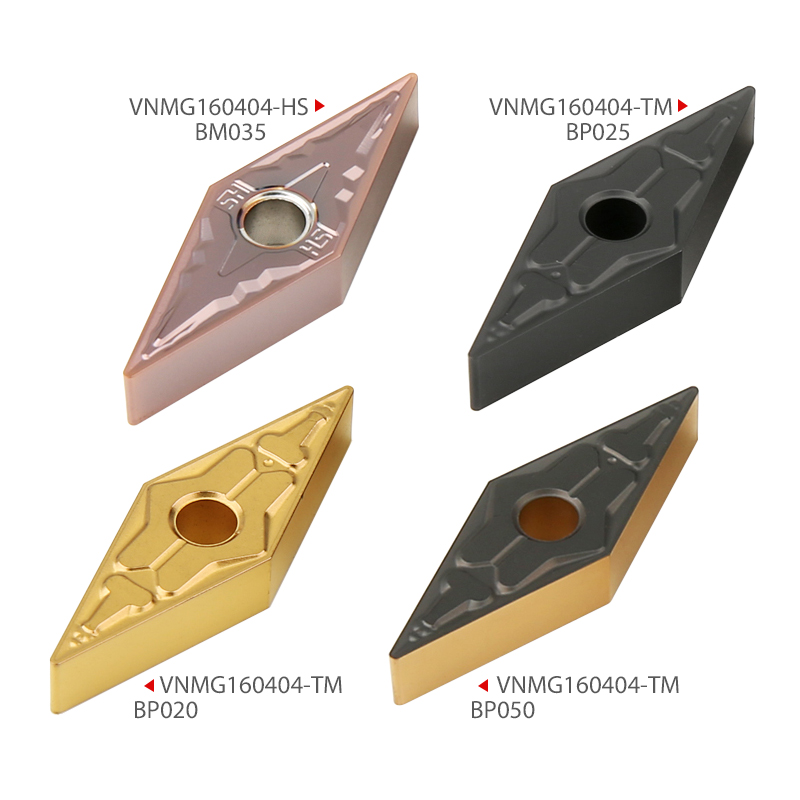

- Insert Grade: BP020, BP025, BP050, BT015, BM035, BM085, BK115
- Insert Shape and Angle: 35°
- Package: 10pcs/box
- Machining Parts Material: Carbon steel, alloy steel, stainless steel, hardened steel, cast iron, etc
- Country of Origin: China
VNMG inserts deliver high precision and stable performance in CNC turning applications. They feature sharp cutting edges that improve cutting efficiency and reduce tool wear. As a result, users can achieve smoother finishes and maintain consistent machining quality. Moreover, these carbide turning inserts minimize vibration and enhance overall productivity.
In addition, VNMG inserts work effectively across a wide range of materials, including carbon steel, alloy steel, stainless steel, and cast iron. Their optimized geometry improves chip evacuation and reduces cutting resistance. Furthermore, they support both roughing and finishing operations, which allows machinists to complete multiple processes with one insert type. Because of this, users can simplify tool management and improve workflow efficiency.
These VNMG16 series inserts also offer excellent compatibility with standard tool holders. Users can choose sizes such as VNMG160404, VNMG160408, and VNMG160412 based on specific machining needs. Therefore, these VNMG inserts provide a flexible, cost-effective, and reliable solution for modern machining environments.

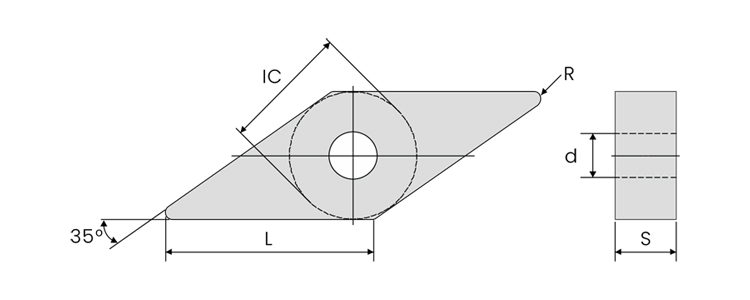

Turning Inserts WNMG Demensions:
| Model | L | IC | S | d | R |
| VNMG160404 | 16.6 | 9.525 | 4.76 | 3.81 | 0.4 |
| VNMG160408 | 16.6 | 9.525 | 4.76 | 3.81 | 0.8 |
| VNMG160412 | 16.6 | 9.525 | 4.76 | 3.81 | 1.2 |
Bwin Grade for Carbide Inserts:
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys. | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P30-P40 | Suitable for processing variou steel parts and cast iron. |
| BC075 | Uncoated | Black | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
| BC090 | Uncoated | Yellow | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
