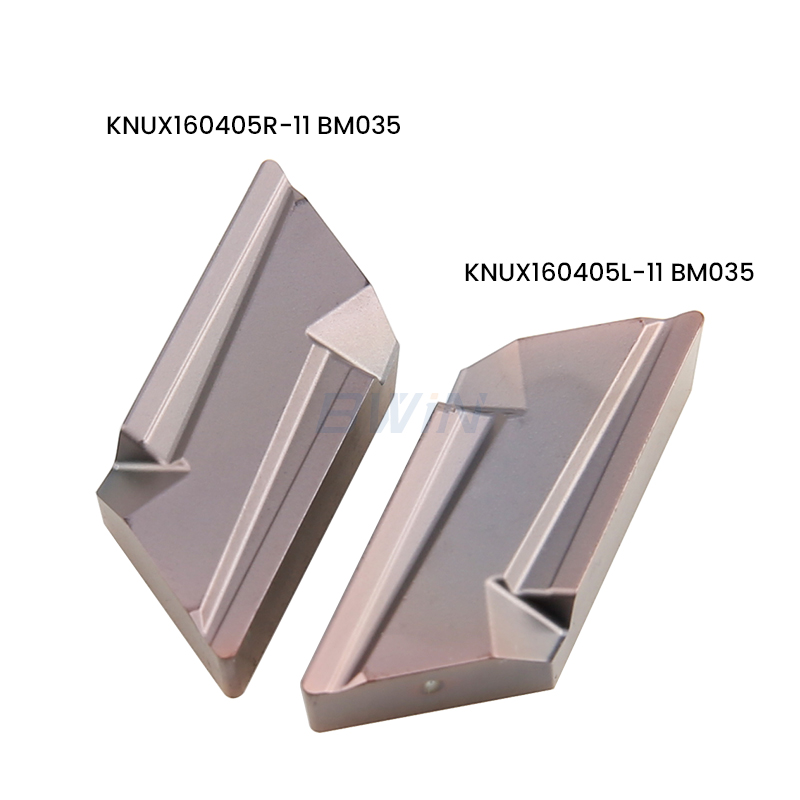

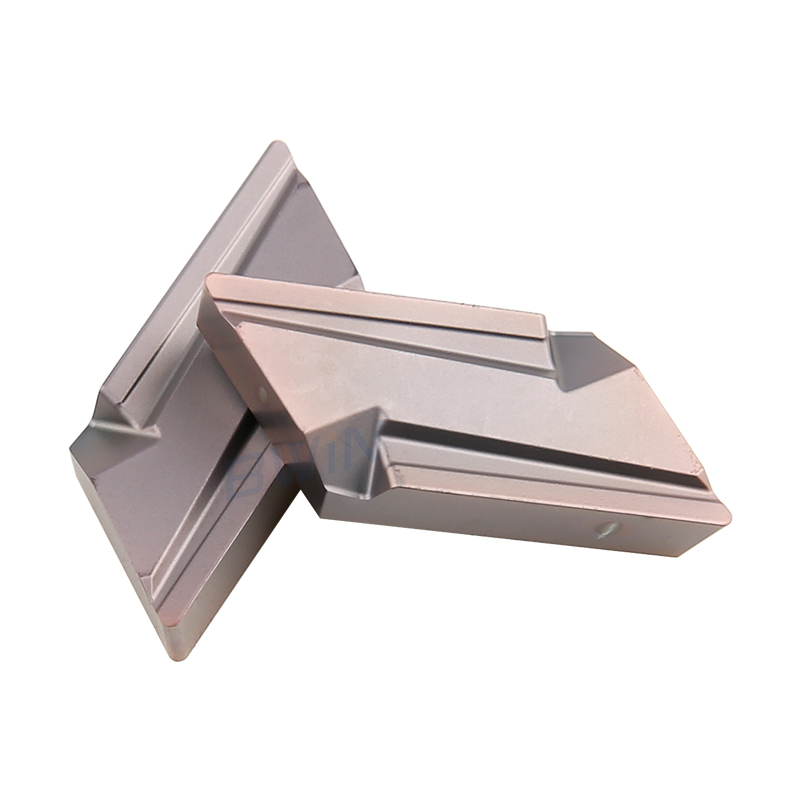

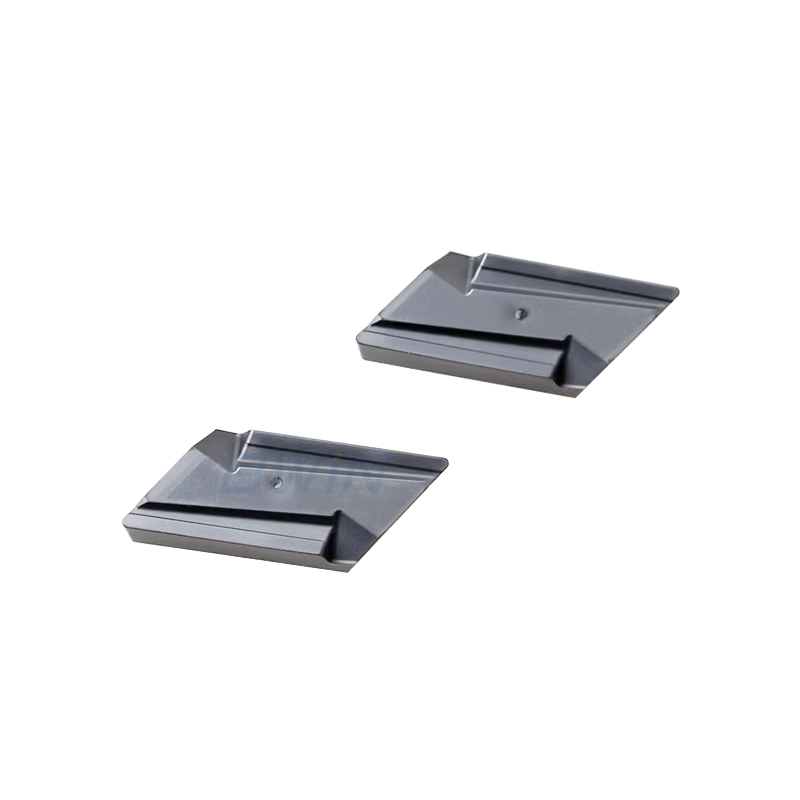

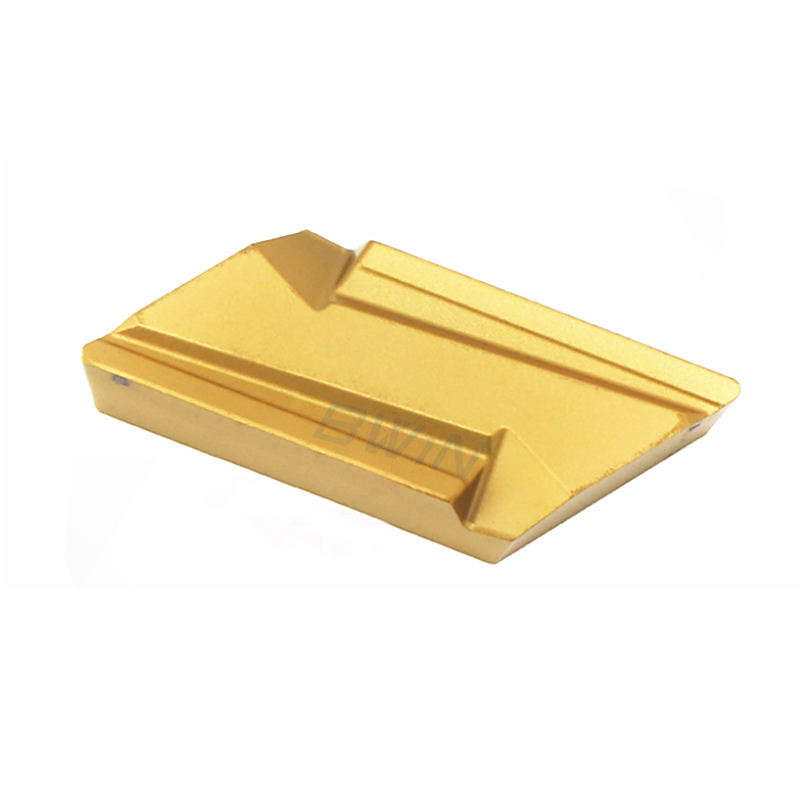

KNUX 160405 Carbide Turning Inserts | KNUX 160405 R11 / L11 for Steel & Stainless Steel
- Brand: Bwin
- Material: Solid carbide
- Insert Style: KNUX
- Insert Grade:BT015, BT065, BM035
- Insert Shape and Angle: 55°
- Package: 10pcs/box
- Machining Parts Material: Carbon steel, alloy steel, stainless steel, cast iron, etc
- Country of Origin: China
KNUX 160405 inserts provide stable and efficient turning for a wide range of materials. These KNUX inserts use high-quality carbide substrate to maintain sharpness and extend tool life. In addition, the optimized geometry reduces cutting resistance and improves surface finish.
Moreover, the KNUX 160405 R11 and KNUX 160405 L11 variants offer flexible solutions for different machining conditions. You can apply KNUX160405 inserts in roughing and semi-finishing operations. The insert design enhances chip evacuation, so operators can maintain consistent cutting performance even at higher speeds.
Furthermore, KNUX inserts perform well in carbon steel, alloy steel, stainless steel, and cast iron applications. Manufacturers choose KNUX160405R inserts to increase productivity and reduce downtime. With strong edge stability and wear resistance, these inserts help you achieve precise machining results and lower overall tooling costs.
Bwin KNUX 160405 R11 Carbide Turning Inserts Specification:
| Model | L | IC | S | d | R |
| KNUX160405R11 | 16.2 | 9.525 | 4.76 | 2.2 | 0.5 |
| KNUX160405L11 | 16.2 | 9.525 | 4.76 | 2.2 | 0.5 |
Bwin Grade for Carbide Inserts:
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys. | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P30-P40 | Suitable for processing variou steel parts and cast iron. |
| BC075 | Uncoated | Black | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
| BC090 | Uncoated | Yellow | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
