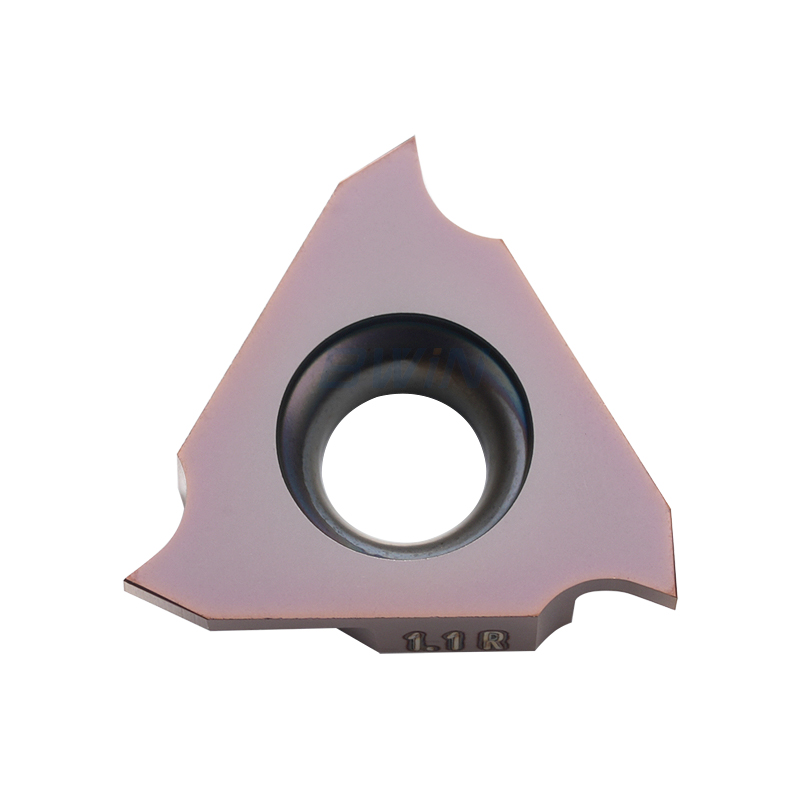

The carbide TGF32R insert provides reliable cutting performance for swiss type lathe machining operations. Its strong cutting edge improves stability and supports precise cutting during high-speed turning. As a result, manufacturers can achieve clean grooves and consistent surface finishes.
Moreover, the TGF32R insert works efficiently when machining stainless steel, alloy steel, and carbon steel. The carbide material increases wear resistance and extends tool life in demanding CNC environments. In addition, the series also includes the TGF32L insert, which allows machinists to choose the correct cutting direction for different applications. Therefore, the TGF32R insert and TGF32L insert become ideal choices for precision parts production on swiss type lathes.
TGF32R/TGF32L Carbide Insert Demensions:
| Model | L | W | G | D | d | t |
| TGF32R050-005 | 16 | 0.5 | 1.3 | 3/8 | 4.4 | 3.18 |
| TGF32R075-010 | 0.75 | 1.9 | ||||
| TGF32R085-010 | 0.85 | 1.9 | ||||
| TGF32R095-010 | 0.95 | 1.9 | ||||
| TGF32R100-010 | 1 | 2.3 | ||||
| TGF32R120-010 | 1.2 | 2.3 | ||||
| TGF32R125-010 | 1.25 | 2.3 | ||||
| TGF32R140-010 | 1.4 | 2.3 | ||||
| TGF32R145-010 | 1.45 | 2.3 | ||||
| TGF32R150-010 | 1.5 | 2.3 | ||||
| TGF32R160-010 | 1.6 | 2.3 | ||||
| TGF32R175-010 | 1.75 | 2.3 | ||||
| TGF32R200-010 | 2 | 2.8 | ||||
| TGF32R250-010 | 2.5 | 2.8 | ||||
| TGF32R300-020 | 3 | 2.8 | ||||
| TGF32L075-010 | 16 | 0.75 | 1.9 | 3/8 | 4.4 | 3.18 |
| TGF32L090-010 | 0.9 | 1.9 | ||||
| TGF32L095-010 | 0.95 | 1.9 | ||||
| TGF32L100-010 | 1 | 2.3 | ||||
| TGF32L120-010 | 1.2 | 2.3 | ||||
| TGF32L125-010 | 1.25 | 2.3 | ||||
| TGF32L140-010 | 1.4 | 2.3 | ||||
| TGF32L145-010 | 1.45 | 2.3 | ||||
| TGF32L150-010 | 1.5 | 2.3 | ||||
| TGF32L175-010 | 1.75 | 2.3 | ||||
| TGF32L200-010 | 2 | 2.8 | ||||
| TGF32L250-010 | 2.5 | 2.8 |
| Bwin Grade for Carbide Inserts | ||||
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P40-P50 | Suitable for processing steel parts |
| BC090 | PVD | Yellow | P50-P60 | Suitable for processing steel parts |
