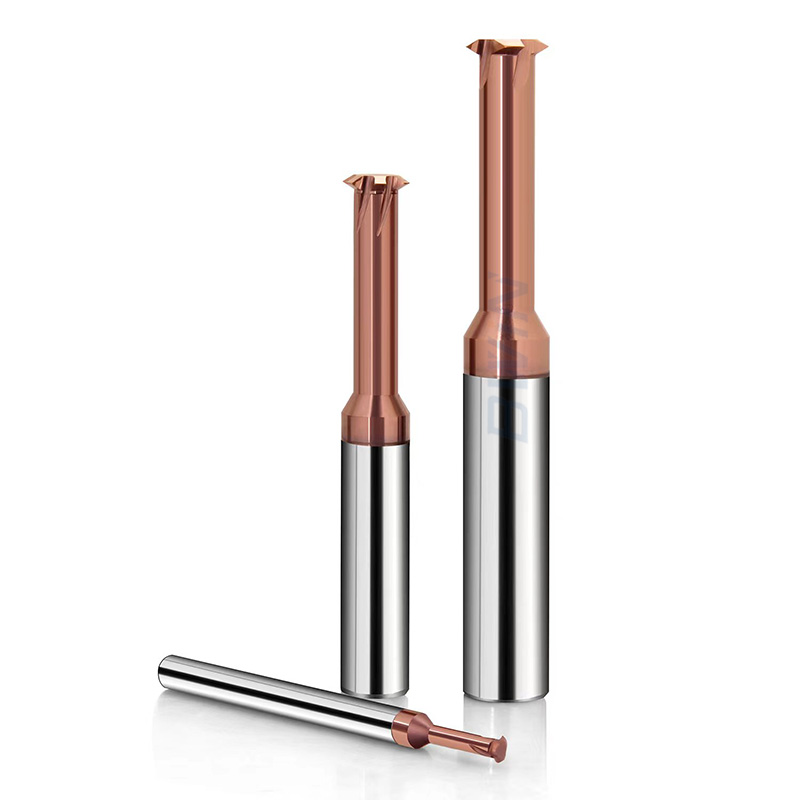

Single Profile Thread Mill | Solid Carbide ISO Metric Thread Mill
- Brand: Bwin
- Material: Solid carbide
- Thread Type: Internal; External
- Thread Size: M0.6-M36
- Flutes: 3 flute, 4 flute, 5 flute, 6 flute

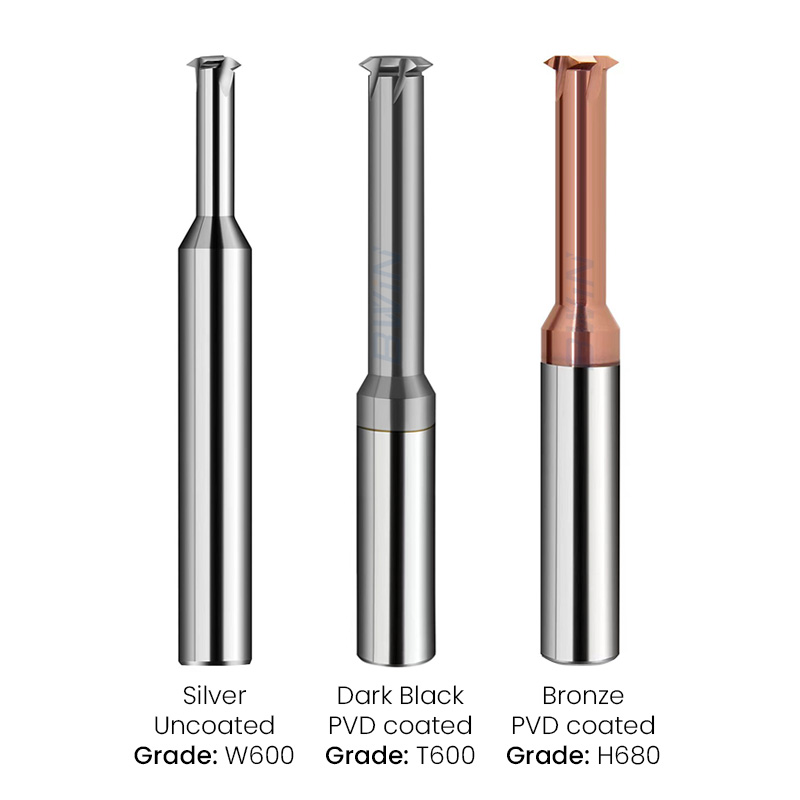

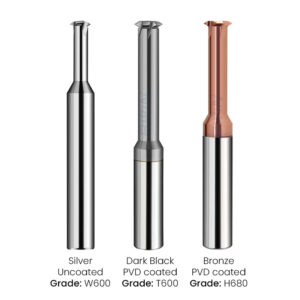

- Coated: PVD coated, uncoated
- Cutting Diameter (mm): 0.43mm-20.0mm
- Shank Diameter (mm): 4mm-20mm
- Effective Length (mm): 1.2mm-50mm
- Overall Diameter (mm): 50mm-100mm
- Package: 1pcs/plastic pipe
- Suitable for: Alloy steel, tool steel, stainless steel, mold steel, titanium alloy
- Country of Origin: China
Product Overview:
The single profile thread mill uses a solid carbide body to machine ISO metric thread profiles. Moreover, its single-profile design supports accurate thread generation across different diameters and thread pitches. Therefore, this solid carbide thread mill suits CNC machining of alloy steel, tool steel, mold steel, stainless steel, manganese steel and titanium alloy.
Product Features:
The single profile thread mill uses a solid carbide construction for machining a defined thread profile. Moreover, it follows ISO metric thread dimensions and supports controlled thread geometry during cutting. Therefore, this solid carbide thread milling cutter suits applications that require one thread profile across different thread diameters and pitches.
Applications and Machining Materials:
The CNC thread mill supports internal thread milling and external thread milling in alloy steel, tool steel, mold steel, stainless steel, manganese steel and titanium alloy. Furthermore, CNC machining centers can use helical interpolation to generate metric threads. As a result, this ISO thread milling cutter fits mold making, automotive, machinery and general metalworking applications.
Single Form Thread Mill Specifications:
| Model | Cutting Dia | Effective length | Shank Dia | Overall length | bottom hole dia. | flutes |
| M0.6*0.15*d4*50L-D | 0.43 | 1.2 | 4 | 50 | 0.45 | 3 |
| M0.8*0.2*d4*50L-D | 0.55 | 2 | 4 | 50 | 0.6 | 3 |
| M0.9*0.225*d4*50L-D | 0.6 | 2 | 4 | 50 | 0.675 | 3 |
| M1*0.25*d4*50L-D | 0.73 | 2.3 | 4 | 50 | 0.75 | 3 |
| M1.2*0.25*d4*50L-D | 0.92 | 2.8 | 4 | 50 | 0.95 | 3 |
| M1.4*0.3*d4*50L-D | 1.05 | 3.2 | 4 | 50 | 1.1 | 3 |
| M1.6*0.35*d4*50L-D | 1.21 | 3.5 | 4 | 50 | 1.25 | 3 |
| M2*0.4*d4*50L-D | 1.54 | 4.5 | 4 | 50 | 1.6 | 3 |
| M2.5*0.45*d4*50L-D | 1.96 | 5.5 | 4 | 50 | 2.05 | 3 |
| M3*0.5*d4*50L-D | 2.4 | 7 | 4 | 50 | 2.5 | 3 |
| M4*0.7*d4*50L-D | 3.15 | 8.6 | 4 | 50 | 3.3 | 4 |
| M5*0.8*d4*50L-D | 4 | 12 | 4 | 50 | 4.2 | 4 |
| M5*0.8*d6*50L-D | 4 | 13 | 6 | 50 | 4.2 | 4 |
| M6*1.0*d6*50-D | 4.75 | 15 | 6 | 50 | 5 | 4 |
| M8*1.25*d6*60-D | 5.95 | 20 | 6 | 60 | 6.75 | 4 |
| M10*1.5*d8*60-D | 7.9 | 25 | 8 | 60 | 8.5 | 6 |
| M12*1.75*d10*75-D | 9.9 | 30 | 10 | 75 | 10.25 | 6 |
| M14*2.0*d10*75-D | 9.9 | 30 | 10 | 75 | 12 | 6 |
| M16*2.0*d12*75-D | 11.9 | 35 | 12 | 75 | 14 | 6 |
| M18*2.5*d14*100-D | 14 | 40 | 14 | 100 | 15.5 | 5 |
| M20*2.5*d16*100-D | 16 | 45 | 16 | 100 | 17.5 | 5 |
| M30*3.5*d16*100-D | 16 | 45 | 16 | 100 | 26.5 | 4 |
| M24*3.0*d16*100-D | 16 | 45 | 16 | 100 | 21 | 5 |
| M36*4.0*d20*100-D | 20 | 50 | 20 | 100 | 32 | 6 |
FAQs:
1. What is a single profile thread mill used for?
A single profile thread mill machines a specific thread profile on CNC equipment. It supports controlled thread generation for different diameters and pitches. Therefore, it suits mold making, machinery, automotive components, and general metalworking applications.
2. Is a single profile thread mill made from solid carbide?
Yes. This solid carbide thread mill uses a solid carbide body for thread milling. Moreover, the carbide construction provides the cutting rigidity required for machining alloy steel, tool steel, mold steel, stainless steel, manganese steel, and titanium alloy.
3. Can a single profile thread mill machine ISO metric threads?
Yes. The tool works as an ISO metric thread mill for machining metric thread profiles. In addition, it can support different thread diameters and pitches when the tool specification matches the required ISO metric thread dimensions.
4. Can a single profile thread mill be used for CNC thread milling?
Yes. A CNC thread mill can work on CNC machining centers through helical interpolation. Therefore, the machine can control the tool path to produce the required thread diameter and pitch while maintaining the specified thread profile.
5.Can a single profile thread mill machine internal and external threads?
Yes. The tool can support both internal thread milling and external thread milling when the tool geometry and CNC tool path match the application. As a result, one thread milling cutter can handle different thread features on suitable workpieces.
