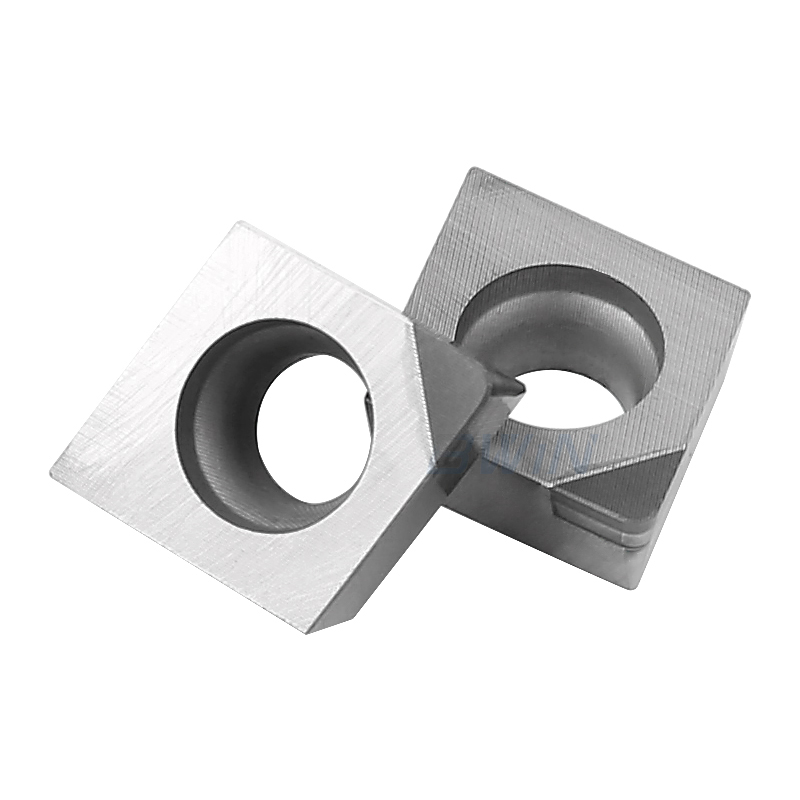

The CCGT09T304 CBN insert is designed for high precision CNC hard turning applications. This ccgt cbn insert performs exceptionally well when machining hardened steel, cast iron, high temperature alloys and carbide materials. In addition, the insert maintains excellent edge stability under high cutting speeds, allowing manufacturers to achieve smooth surface finishes and reliable dimensional accuracy.
Furthermore, this ccgt insert for hardened steel uses premium PCBN material to improve wear resistance and thermal stability. As a result, the insert reduces tool wear and minimizes machine downtime during continuous production. The sharp cutting geometry also enhances chip control, while the polished edge helps lower cutting resistance during finish turning operations. Therefore, many machining workshops select this cnc hard turning insert for demanding industrial applications.
Moreover, the ccgt09t304 cbn insert supports automotive, bearing, aerospace and mold manufacturing industries. It performs efficiently in interrupted cutting and high hardness turning environments. As a professional pcbn inserts supplier and cbn insert manufacturer, we provide stable product quality, OEM support and competitive factory pricing for global distributors and CNC machining companies. Many customers trust our china cbn insert supplier service because we deliver reliable products, fast production and consistent machining performance.

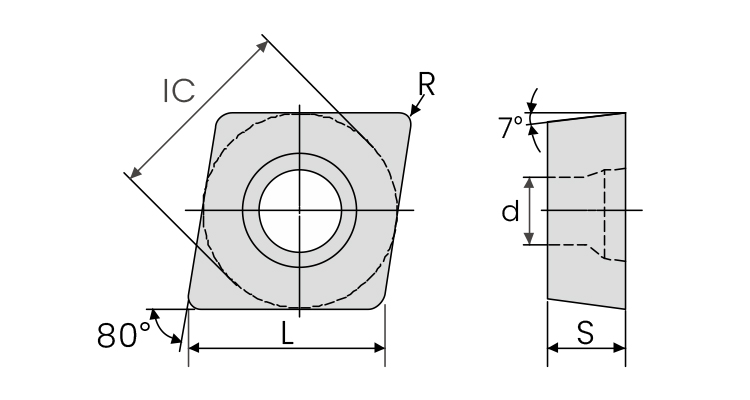

Bwin Availabe CCGT CBN Insert Specification:
| Model | L | IC | S | d | R |
| CCGT060202 | 6.4 | 6.35 | 2.38 | 2.5 | 0.2 |
| CCGT060204 | 6.4 | 6.35 | 2.38 | 2.5 | 0.4 |
| CCGT060208 | 6.4 | 6.35 | 2.38 | 2.5 | 0.8 |
| CCGT09T302 | 9.7 | 9.525 | 2.38 | 2.8 | 0.2 |
| CCGT09T304 | 9.7 | 9.525 | 2.38 | 2.8 | 0.4 |
| CCGT09T308 | 9.7 | 9.525 | 2.38 | 2.8 | 0.8 |
| CCGT120402 | 12.9 | 12.7 | 3.97 | 4.4 | 0.2 |
| CCGT120404 | 12.9 | 12.7 | 3.97 | 4.4 | 0.4 |
| CCGT120408 | 12.9 | 12.7 | 3.97 | 4.4 | 0.8 |
Bwin Grade for Carbide Inserts:
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys. | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P30-P40 | Suitable for processing variou steel parts and cast iron. |
| BC075 | Uncoated | Black | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
| BC090 | Uncoated | Yellow | P40-P50 | Suitable for processing hardenedsteel and cast iron. |
