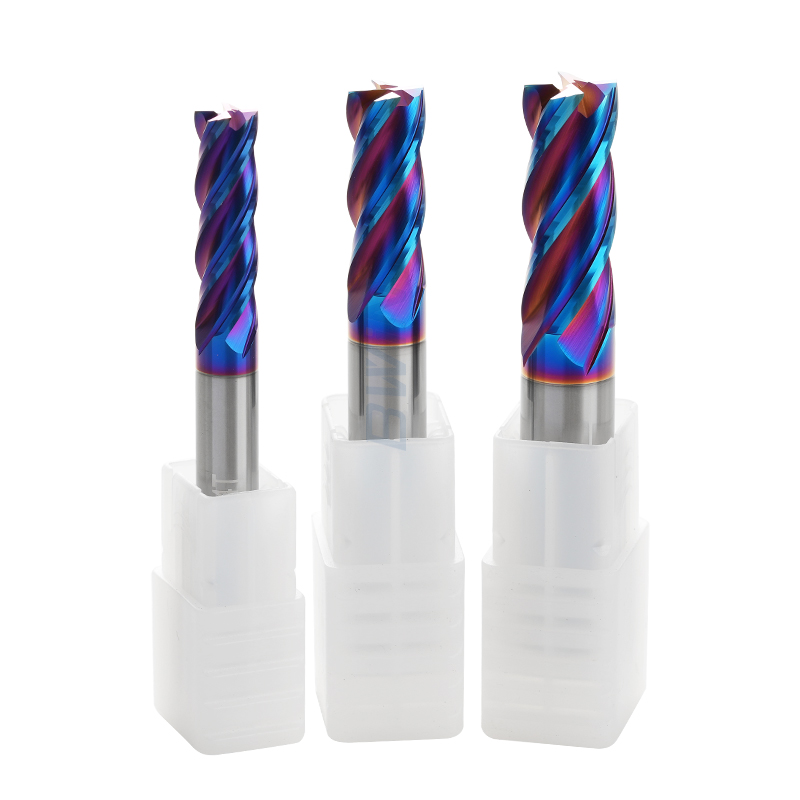

HRC65 carbide end mill with square end mill design for machining hardened steel, mold steel, carbon steel, alloy steel, stainless steel and cast iron

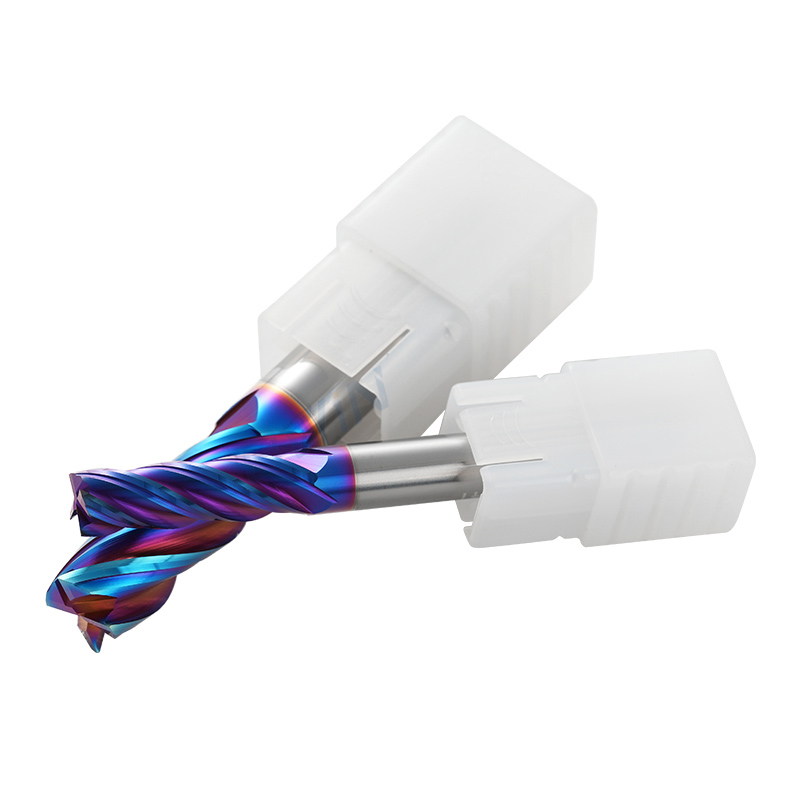

bwin HRC65 carbide end mill with flat end mill design for machining hardened steel, mold steel, carbon steel, alloy steel, stainless steel and cast iron
  • HRC65 carbide end mill with square end mill design for machining hardened steel, mold steel, carbon steel, alloy steel, stainless steel and cast iron
  • bwin HRC65 carbide end mill with flat end mill design for machining hardened steel, mold steel, carbon steel, alloy steel, stainless steel and cast iron

HRC65 Carbide End Mill | Solid Carbide Square End Mill

  • Brand: Bwin
  • Customized Support: OEM, ODM
  • Material: Solid carbide
  • Flutes: 4 flute
  • Coated: TiSiN, TiAlN (nano black), AlTiSiN (nano blue)
  • Cutting Diameter (mm): 0.1mm-20mm
  • Shank Diameter (mm): 4mm-20mm
  • Flute Length (mm): 3mm-70mm
  • Overall Diameter (mm): 50mm-150mm
  • Helix Angle: 35 degree
  • End Style: Standard
  • Package: 1pcs/plastic pipe
  • Suitable for: Carbon steel, alloy steel, stainless steel, hardened steel, cast iron
Request a quote
Categories: , Tags: , , , , ,

Product Overview:

HRC65 carbide end mill uses solid carbide material with a square cutting edge design for hard milling applications. Moreover, this carbide square end mill machines hardened steel, mold steel, carbon steel, alloy steel, stainless steel, and cast iron. Therefore, the HRC65 solid carbide end mill provides stable cutting performance for CNC machining centers, mold manufacturing, automotive parts, and precision engineering applications.

Product Features:

HRC65 carbide end mill features a solid carbide structure with a square end mill design for high hardness machining. Moreover, the optimized cutting geometry improves chip evacuation and reduces vibration during CNC milling. Therefore, this carbide square end mill supports hard milling operations for hardened materials, mold steel, and precision components.

Applications and Machining Materials:

Furthermore, the HRC65 solid carbide end mill fits CNC machining centers and high-speed milling machines. In addition, this square end mill for hardened steel processes carbon steel, alloy steel, stainless steel, and cast iron for mold manufacturing, automotive, aerospace, and mechanical engineering industries.

HRC55 HRC60 HRC65  Carbide square end mill specifications:

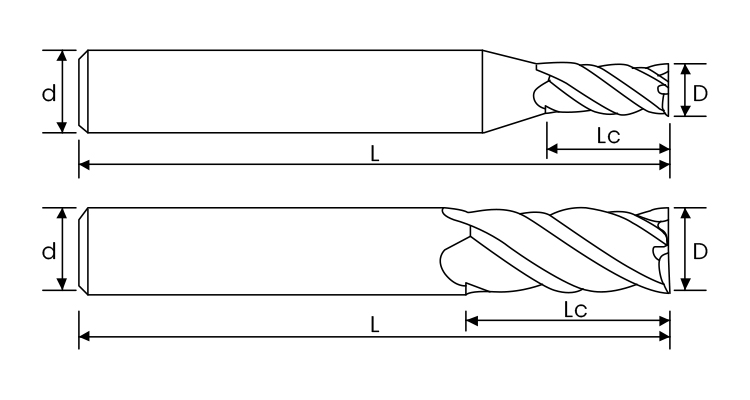

2 flute end mill hrc55 demension square end mill flat end mill

Model Cutting Dia.(D) FLute Length(Lc) Shank Dia.(d) Overall Length(L) Flutes
1*3*4*50 1 3 4 50 4
1.5*4*4*50 1.5 4 4 50 4
2*5*4*50 2 5 4 50 4
2.5*7*4*50 2.5 7 4 50 4
3*8*4*50 3 8 4 50 4
3.5*10*4*50 3.5 10 4 50 4
4*10*4*50 4 10 4 50 4
4*16*4*75 4 16 4 75 4
4*20*4*100 4 20 4 100 4
5*13*5*50 5 13 5 50 4
5*20*5*75 5 20 5 75 4
5*25*5*100 5 25 5 100 4
1*3*6*50 1 3 6 50 4
1.5*4*6*50 1.5 4 6 50 4
2*5*6*50 2 5 6 50 4
2.5*7*6*50 2.5 7 6 50 4
3*8*6*50 3 8 6 50 4
3.5*10*6*50 3.5 10 6 50 4
4*10*6*50 4 10 6 50 4
4.5*12*6*50 4.5 12 6 50 4
5*13*6*50 5 13 6 50 4
6*15*6*50 6 15 6 50 4
6*25*6*75 6 25 6 75 4
6*30*6*100 6 30 6 100 4
6*40*6*150 6 40 6 150 4
7*18*8*60 7 18 8 60 4
8*20*8*60 8 20 8 60 4
8*25*8*75 8 25 8 75 4
8*35*8*100 8 35 8 100 4
8*50*8*150 8 50 8 150 4
9*23*10*75 9 23 10 75 4
10*25*10*75 10 25 10 75 4
10*40*10*100 10 40 10 100 4
10*50*10*150 10 50 10 150 4
11*28*12*75 11 28 12 75 4
12*30*12*75 12 30 12 75 4
12*45*12*100 12 45 12 100 4
12*60*12*150 12 60 12 150 4
14*45*14*100 14 45 14 100 4
14*60*14*150 14 60 14 150 4
16*45*16*100 16 45 16 100 4
16*60*16*150 16 60 16 150 4
18*45*18*100 18 45 18 100 4
18*70*18*150 18 70 18 150 4
20*45*20*100 20 45 20 100 4
20*70*20*150 20 70 20 150 4
Note: We offer full customization for all specs. For more information, please contact us at any time.
As a matter of fact, Bwin delivers a comprehensive range of high-quality CNC spare parts. To be specific, our catalog covers carbide end mills, carbide inserts, turning bar tools, face milling tools, hole drilling tools, thread tapping tools, carbide burrs, tool holders, machine vises, live centers, chucks, CNC angle heads, carbide saw blades, and clamping kits. What’s more, we also stock brand-name carbide inserts from trusted manufacturers.
Beyond that, we take parts support to the next level. In other words, we don’t just sell components — we actively keep your machines humming and your business moving forward. Above all, every service we deliver aims to minimize your downtime and maximize your output.
