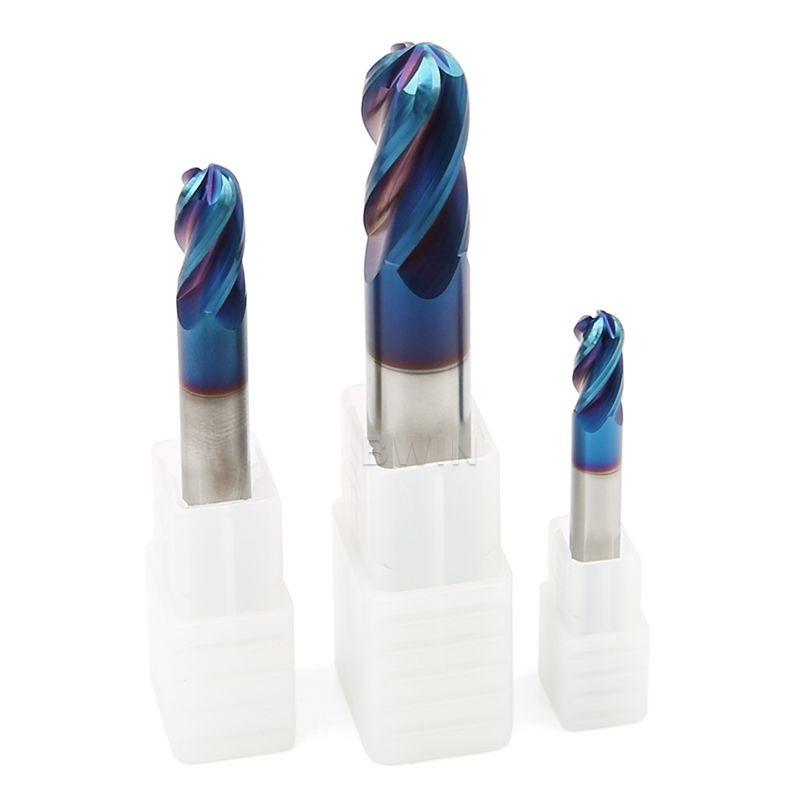

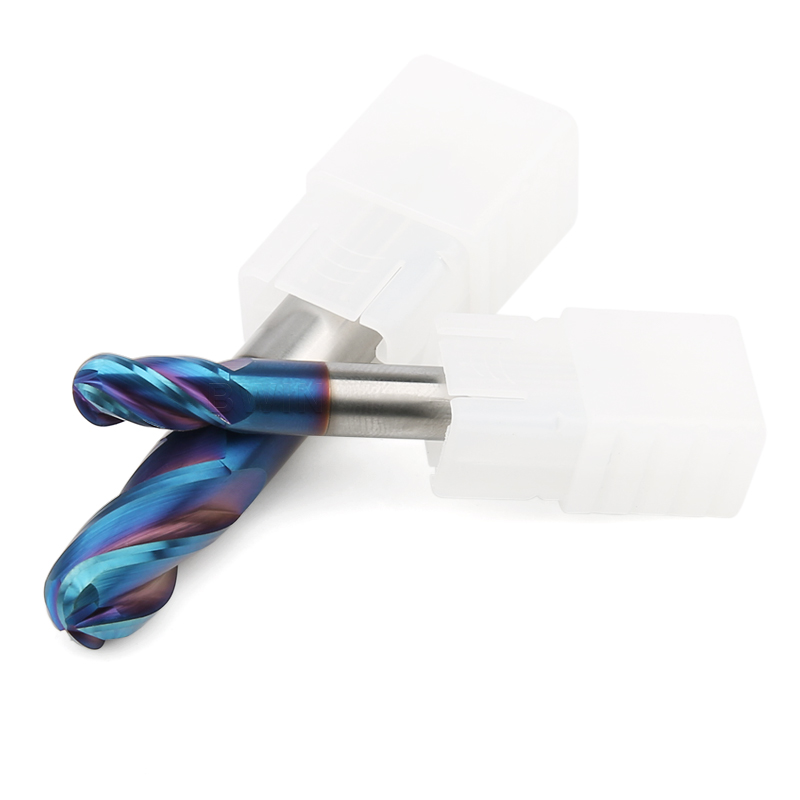

HRC65 Ball Nose End Mill | 4 Flute Nano AlTiSiN Coated
- Brand: Bwin
- Customized Support: OEM, ODM
- Material: Solid carbide
- Flutes: 4 flute
- Coated: TiSiN, TiAlN (nano black), AlTiSiN (nano blue)
- Cutting Diameter (mm): 0.1mm-20mm
- Shank Diameter (mm): 4mm-20mm
- Flute Length (mm): 2mm-40mm
- Overall Diameter (mm): 50mm-150mm
- Helix Angle: 30 degree
- End Style: Standard
- Package: 1pcs/plastic pipe
- Suitable for: Carbon steel, alloy steel, stainless steel, hardened steel, cast iron
Product Overview:
HRC65 ball nose end mill uses a solid carbide substrate with Nano AlTiSiN coating and a 4 flute cutting design for CNC hard milling. Moreover, this tool machines hardened steel, mold steel, carbon steel, alloy steel, stainless steel, and cast iron. Therefore, it suits 3D contouring, mold cavity machining, and precision surface finishing.
Product Features:
HRC65 ball nose end mill features a solid carbide substrate with Nano AlTiSiN coating and a 4 flute ball nose design. Moreover, the coating helps the cutting edge resist heat and wear during hard milling, while the rounded edge supports 3D contouring and curved-surface machining. Therefore, this solid carbide ball nose end mill suits hardened material applications.
Applications and Machining Materials:
Furthermore, the tool machines hardened steel, mold steel, carbon steel, alloy steel, stainless steel, and cast iron. In addition, this ball nose end mill for hardened steel fits CNC machining centers for mold, automotive, aerospace, and precision engineering applications.
HRC55 HRC60 HRC65 Carbide ball nose end mill specifications:
| Model | Cutting Radius | Flute Length | Shank Dia. | Overall Length | Flutes |
| R0.5*2*4*50 | 0.5 | 2 | 4 | 50 | 4 |
| R0.75*3*4*50 | 0.75 | 3 | 4 | 50 | 4 |
| R1*4*4*50 | 1 | 4 | 4 | 50 | 4 |
| R1.25*5*4*50 | 1.25 | 5 | 4 | 50 | 4 |
| R1.5*6*4*50 | 1.5 | 6 | 4 | 50 | 4 |
| R1.75*7*4*50 | 1.75 | 7 | 4 | 50 | 4 |
| R2*8*4*50 | 2 | 8 | 4 | 50 | 4 |
| R2*8*4*75 | 2 | 8 | 4 | 75 | 4 |
| R2*8*4*100 | 2 | 8 | 4 | 100 | 4 |
| R2.5*10*5*50 | 2.5 | 10 | 5 | 50 | 4 |
| R2.5*10*5*75 | 2.5 | 10 | 5 | 75 | 4 |
| R2.5*10*5*100 | 2.5 | 10 | 5 | 100 | 4 |
| R3*12*6*50 | 3 | 12 | 6 | 50 | 4 |
| R3*12*6*75 | 3 | 12 | 6 | 75 | 4 |
| R3*12*6*100 | 3 | 12 | 6 | 100 | 4 |
| R3*12*6*150 | 3 | 12 | 6 | 150 | 4 |
| R3.5*14*8*60 | 3.5 | 14 | 8 | 60 | 4 |
| R4*16*8*60 | 4 | 16 | 8 | 60 | 4 |
| R4*16*8*75 | 8 | 16 | 8 | 75 | 4 |
| R4*16*8*100 | 4 | 16 | 8 | 100 | 4 |
| R4*16*8*150 | 4 | 16 | 8 | 150 | 4 |
| R4.5*18*10*75 | 4.5 | 18 | 10 | 75 | 4 |
| R5*20*10*75 | 5 | 20 | 10 | 75 | 4 |
| R5*20*10*100 | 5 | 20 | 10 | 100 | 4 |
| R5*20*10*150 | 5 | 20 | 10 | 150 | 4 |
| R5.5*22*12*75 | 5.5 | 22 | 12 | 75 | 4 |
| R6*24*12*75 | 6 | 24 | 12 | 75 | 4 |
| R6*24*12*100 | 6 | 24 | 12 | 100 | 4 |
| R6*24*12*150 | 6 | 24 | 12 | 150 | 4 |
| R7*28*14*100 | 7 | 28 | 14 | 100 | 4 |
| R7*28*14*150 | 7 | 28 | 14 | 150 | 4 |
| R8*32*16*100 | 8 | 32 | 16 | 100 | 4 |
| R8*32*16*150 | 8 | 32 | 16 | 150 | 4 |
| R9*36*18*100 | 9 | 36 | 18 | 100 | 4 |
| R9*36*18*150 | 9 | 36 | 18 | 150 | 4 |
| R10*40*20*100 | 10 | 40 | 20 | 100 | 4 |
| R10*40*20*150 | 10 | 40 | 20 | 150 | 4 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 4 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 4 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 4 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 4 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 4 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 4 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 4 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 4 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 4 |
Note: We offer full customization for all specs. For more information, please contact us at any time.
