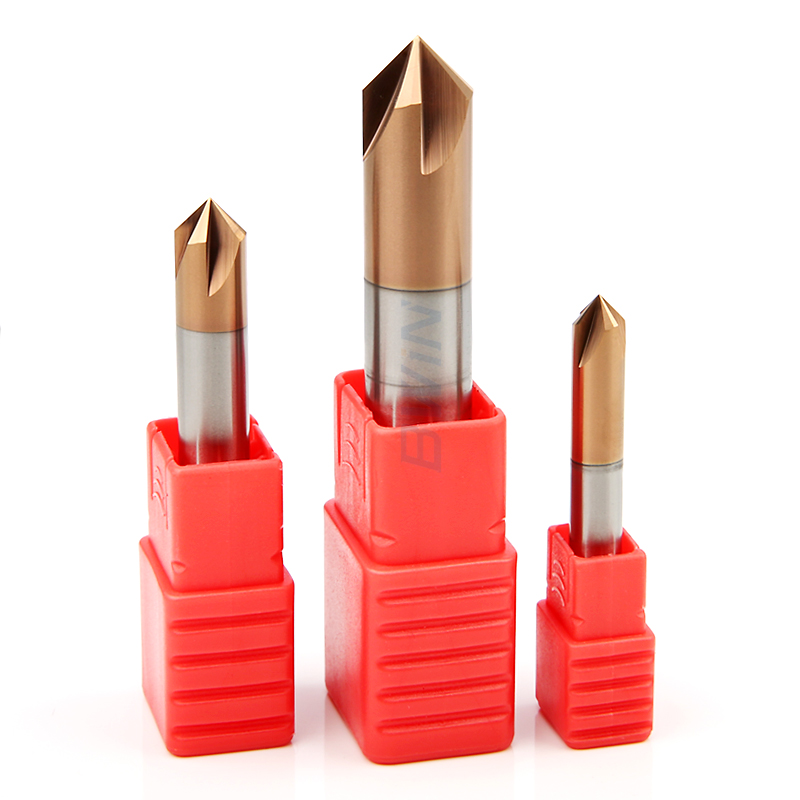

Solid Carbide Chamfer End Mills TiSiN Coated Chamfer Milling Cutter
- Brand: Bwin
- Customized Support: OEM, ODM
- Material: Tungsten carbide
- Flute: 3 Flute, 4 Flute
- Coated: TiSiN
- Shank Diameter (mm): 4mm, 6mm, 8mm, 10mm, 12mm
- Overall Diameter (mm): 50mm, 60mm, 75mm
- End Style: Chamfer
- Spiral Direction: Straight
- Package: 1pcs/plastic pipe
- Suitable for: Carbon steel, alloy steel, cast iron
These solid carbide chamfer end mills provide stable and efficient chamfer milling for alloy steel, carbon steel, and cast iron. First, the TiSiN coating enhances heat resistance and reduces friction during cutting. As a result, the chamfer milling cutter maintains sharp edges and consistent performance even under high-speed conditions.

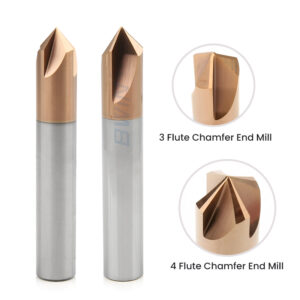

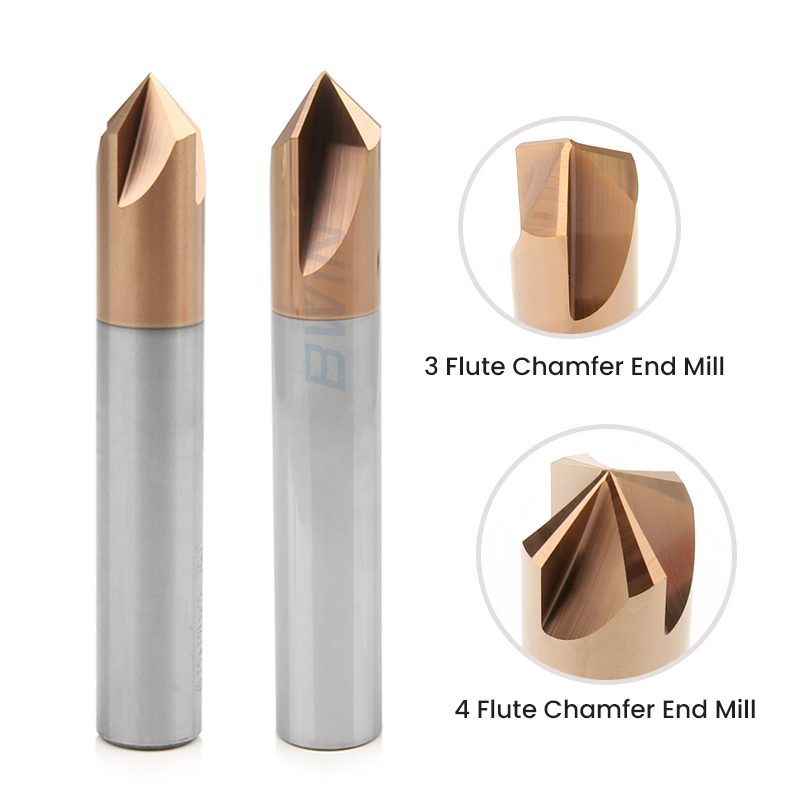

In addition, we offer 3-flute and 4-flute designs to meet different machining needs. You can choose 60 degree, 90 degree, or 120 degree angles for precise edge preparation and deburring. Therefore, this chamfer milling cutter supports a wide range of chamfer milling operations, including edge breaking, countersinking, and surface finishing. Whether you run CNC machining centers or milling machines, these chamfer end mills help you improve efficiency and achieve clean, accurate

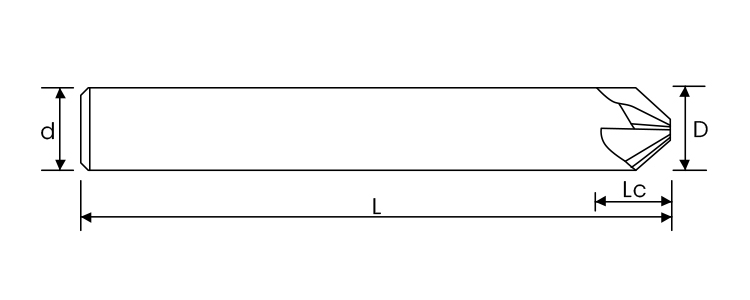

| Model | Shank Dia. | Overall Length | Angle | Flute |
| 4*50*90° | 4 | 50 | 60°/90°/120° | 4 |
| 6*50*90° | 6 | 50 | 60°/90°/120° | 4 |
| 8*60*90° | 8 | 60 | 60°/90°/120° | 4 |
| 10*75*90° | 10 | 75 | 60°/90°/120° | 4 |
| 12*75*90° | 12 | 75 | 60°/90°/120° | 4 |
