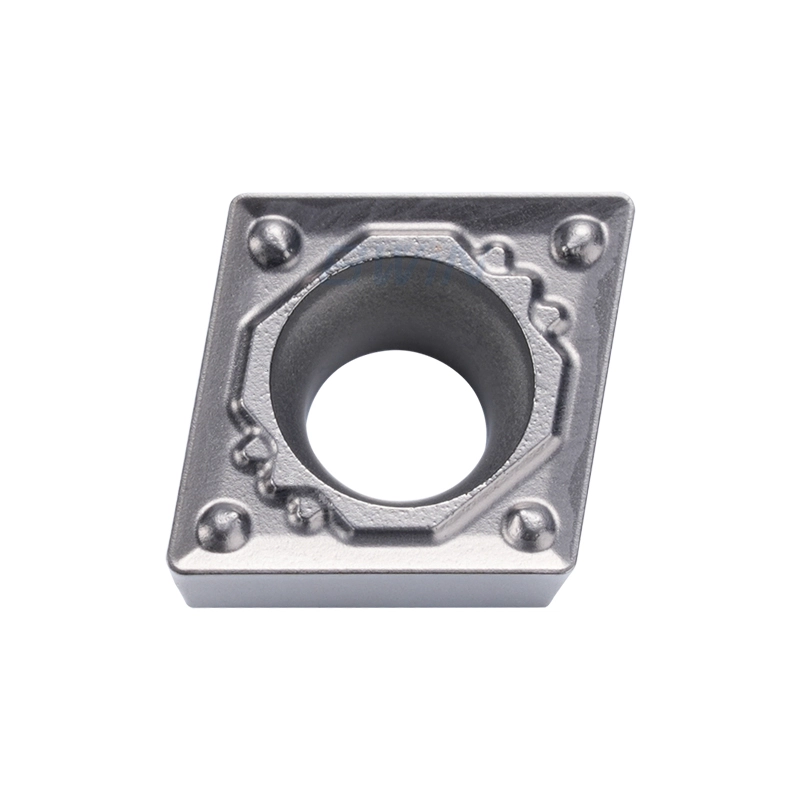

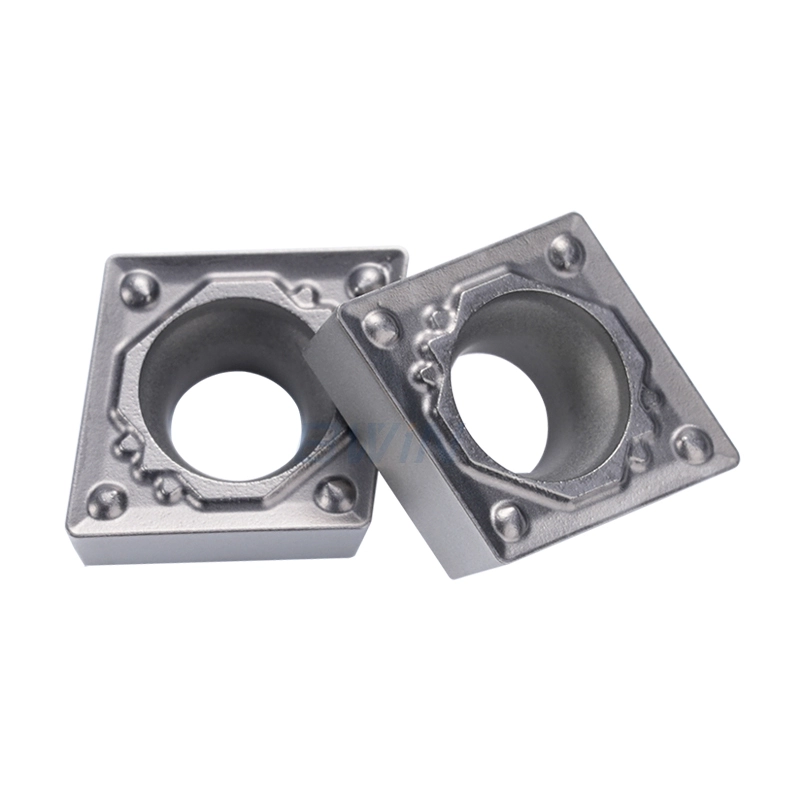

Ceramic Fort Lathe Turning CNC Carbide Insert
- Brand: Bwin
- Material: TiCN+ NbC
- Insert Style: CCMT
- Insert Grade: BC060
- Chip Breaker: JHQ
- Machining Process: semi finishing and finishing
- Insert Shape and Angle: 80°
- Package: 10pcs/box
- Machining Parts Material: Steel, carbon steel, alloy steel, stainless steel, cast iron, mould steel, hardened steel
Cermet insert has high hardness and is suitable for semi finishing and finishing of various steel parts and iron cast. It has low affinity with machined workpiece material and is not susceptible to build-up adge; Chemical stability is good; Heat resistance and wear resistance are good.
| Bwin Grade for Carbide Inserts | ||||
| Bwin Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Suitable for semi-finishing to finishing machining of soft steel. |
| BP025 | CVD | Black | P25-P35 | Preferred grade for semi-finishing to finishing steel machining. |
| BP030 | CVD | Yellow | P25-P35 | BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel. |
| BP050 | CVD | Two-color | P35-P45 | It is suitable for turning of various steels and is the first choice for wear resistance. |
| BP070 | CVD | Colorful | P40-P65 | Suitable for hardened steel and difficult to machine materials |
| BM035 | PVD | Dark Purple | M10-M30 | Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | Preferred grade for steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M30-M55 S15-S40 H15-H55 |
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc |
| BN01 | Uncoated | Silver | Suitable for processing non-ferrous metals such as copper and aluminum alloys | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Suitable for steel and cast iron slight milling. |
| BT030 | PVD | Dark purple | P10-P25 M15-M35 |
Suitable for steel and stainless steel continue turning and threading. |
| BT065 | PVD | Yellow | P10-P20 | Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | Suitable grade for semi-finishing to slight interrupted cast iron machining. |
| BC060 | Uncoated | Silver | P40-P50 | Suitable for processing steel parts |
| BC090 | PVD | Yellow | P50-P60 | Suitable for processing steel parts |
