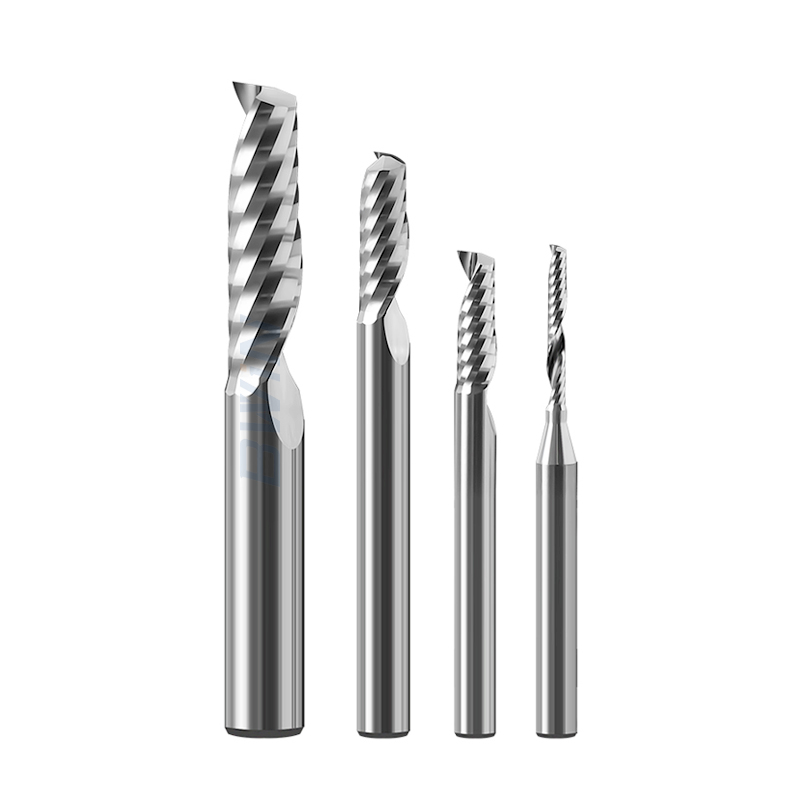

Single Flute End Mills for Aluminum Copper Plastic Acrylic
- Customized Support: OEM, ODM
- Material: Solid carbide
- Flute: 1 Flute

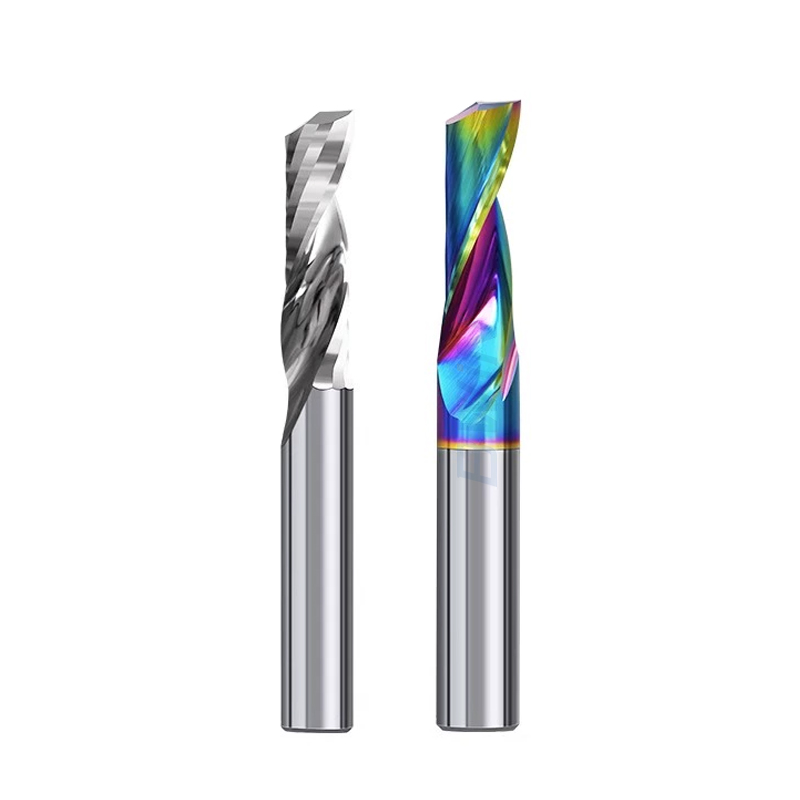

- Coated: Uncoated, DLC
- Cutting Radius(mm): 1mm-12mm
- Shank Diameter (mm): 3.175mm, 4mm, 5, 6mm, 8mm, 10mm, 12mm
- Overall Diameter (mm): 38mm-90mm
- End Style: Square
- Package: 1pcs/plastic pipe
- Suitable for: Aluminum, copper, plastic, acrylic, MDF
Single flute end mills deliver high efficiency in soft material machining. They feature a large flute design that removes chips quickly and prevents clogging. As a result, users can achieve smoother cutting surfaces and reduce heat buildup during operation. Moreover, the sharp cutting edge improves precision and ensures stable machining performance.
In addition, this one flute end mill works especially well for aluminum, copper, plastic, acrylic, and MDF. It supports high-speed CNC machining and maintains consistent results even in long cutting cycles. Furthermore, the polished flute surface reduces friction, so it improves tool life and enhances surface finish quality.
This 1 flute end mill also offers excellent usability. Operators can install it easily on standard CNC machines, routers, and engraving machines. Whether you handle light-duty cutting or detailed finishing, this single flute cutter provides reliable performance. Therefore, it becomes an ideal choice for workshops, sign making, and industrial machining tasks.
Single Flute End Mills

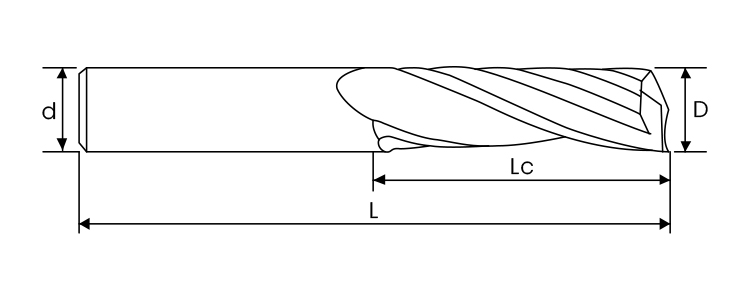

| Model | Cutting Dia(D) | Flute Length(Lc) | Shank Dia(d) | Overall Length(L) | Flutes |
| 1*4*3.175*38 | 1 | 4 | 3.175 | 38 | 1 |
| 1.5*6*3.175*38 | 1.5 | 6 | 3.175 | 38 | 1 |
| 1.5*8*3.175*38 | 1.5 | 8 | 3.175 | 38 | 1 |
| 1.5*12*3.175*38 | 1.5 | 12 | 3.175 | 38 | 1 |
| 2*8*3.175*38 | 2 | 8 | 3.175 | 38 | 1 |
| 2*12*3.175*38 | 2 | 12 | 3.175 | 38 | 1 |
| 2*17*3.175*38 | 2 | 17 | 3.175 | 38 | 1 |
| 2*22*3.175*38 | 2 | 22 | 3.175 | 38 | 1 |
| 2.5*10*3.175*38 | 2.5 | 10 | 3.175 | 38 | 1 |
| 2.5*12*3.175*38 | 2.5 | 12 | 3.175 | 38 | 1 |
| 2.5*17*3.175*38 | 2.5 | 17 | 3.175 | 38 | 1 |
| 2.5*22*3.175*45 | 2.5 | 22 | 3.175 | 38 | 1 |
| 3.175*12*3.175*38 | 3.175 | 12 | 3.175 | 38 | 1 |
| 3.175*15*3.175*38 | 3.175 | 15 | 3.175 | 38 | 1 |
| 3.175*17*3.175*38 | 3.175 | 17 | 3.175 | 38 | 1 |
| 3.175*22*3.175*45 | 3.175 | 22 | 3.175 | 45 | 1 |
| 3.175*25*3.175*50 | 3.175 | 25 | 3.175 | 50 | 1 |
| 3.175*32*3.175*60 | 3.175 | 32 | 3.175 | 60 | 1 |
| 4*12*4*45 | 4 | 12 | 4 | 45 | 1 |
| 4*15*4*45 | 4 | 15 | 4 | 45 | 1 |
| 4*17*4*45 | 4 | 17 | 4 | 45 | 1 |
| 4*22*4*45 | 4 | 22 | 4 | 45 | 1 |
| 4*25*4*50 | 4 | 25 | 4 | 50 | 1 |
| 4*32*4*60 | 4 | 32 | 4 | 60 | 1 |
| 5*17*5*45 | 5 | 17 | 5 | 45 | 1 |
| 5*22*5*45 | 5 | 22 | 5 | 45 | 1 |
| 5*25*5*50 | 5 | 25 | 5 | 50 | 1 |
| 5*32*5*60 | 5 | 32 | 5 | 60 | 1 |
| 6*17*6*45 | 6 | 17 | 6 | 45 | 1 |
| 6*22*6*45 | 6 | 22 | 6 | 45 | 1 |
| 6*32*6*60 | 6 | 32 | 6 | 60 | 1 |
| 6*42*6*70 | 6 | 42 | 6 | 70 | 1 |
| 8*22*8*50 | 8 | 22 | 8 | 50 | 1 |
| 8*25*8*60 | 8 | 25 | 8 | 60 | 1 |
| 8*32*8*60 | 8 | 32 | 8 | 60 | 1 |
| 8*52*8*80 | 8 | 52 | 8 | 80 | 1 |
| 10*32*10*70 | 10 | 32 | 10 | 70 | 1 |
| 10*42*10*80 | 10 | 42 | 10 | 80 | 1 |
| 10*52*10*90 | 10 | 52 | 10 | 90 | 1 |
| 12*32*12*70 | 12 | 32 | 12 | 70 | 1 |
| 12*42*12*80 | 12 | 42 | 12 | 80 | 1 |
| 12*52*12*90 | 12 | 52 | 12 | 90 | 1 |
