VBMT160404 VBMT160408 Carbide Turning Insert for Stainless Steel

  • Brand: Bwin
  • Material: Solid carbide
  • Insert Style: VBMT
  • Insert Grade: BP020, BP050, BM035, BM085, BC060
  • Insert Shape and Angle: 35°
  • Package: 10pcs/box
  • Machining Parts Material: Carbon steel, alloy steel, stainless steel, hardened steel, cast iron, etc
  • Country of Origin: China
SKU: VBMT110302 | VBMT110304 | VBMT110308 | VBMT160404 | VBMT160408 Categories: , Tags: , , , , , , , ,

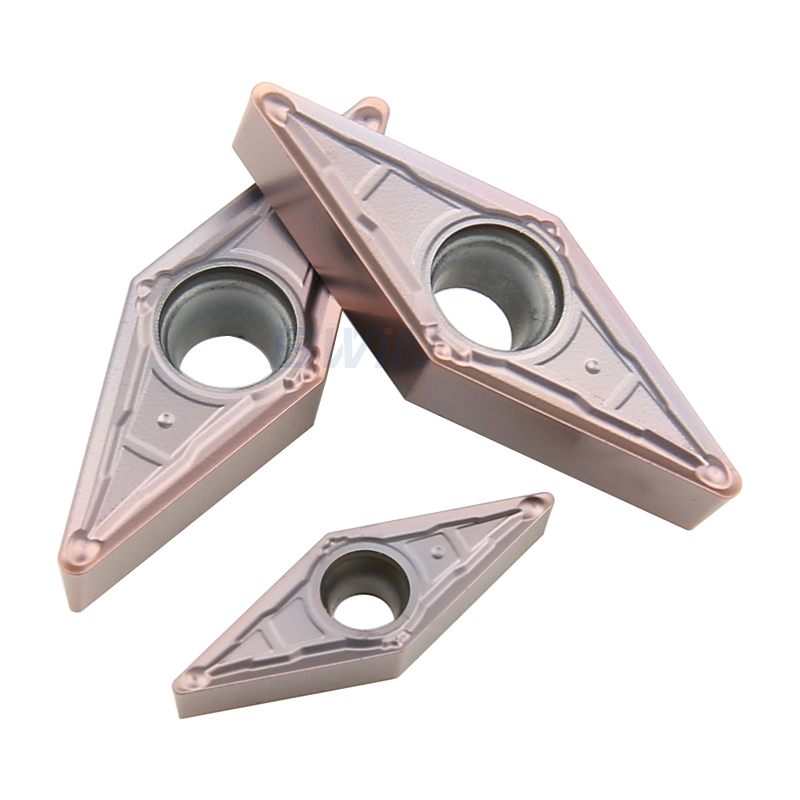

VBMT 1604 Carbide Inserts

VBMT160404 and VBMT160408 carbide turning inserts are engineered to deliver superior performance in a wide range of turning operations. These inserts effectively machine carbon steel, alloy steel, stainless steel, and cast iron while maintaining excellent dimensional accuracy and surface finish. As a result, manufacturers can achieve stable production and reduce machining costs.

Moreover, the VBMT 16 04 04 and VBMT 16 04 08 inserts feature advanced carbide substrates that improve wear resistance and cutting stability. Therefore, they perform reliably under continuous and interrupted cutting conditions. In addition, the optimized cutting geometry enhances chip evacuation, minimizes cutting forces, and helps extend tool life. Whether you use a VBMT 1604 insert for roughing or finishing, these inserts provide consistent and dependable results.

Furthermore, these VBMT turning inserts are compatible with various CNC turning applications and industrial machining environments. They serve as excellent alternatives for users searching for VBMT160404, VBMT160408, VBMT110304, VBMT110302, VBMT16, or VBMT 110304 inserts. Consequently, machine shops can improve productivity, maintain machining precision, and achieve high-quality finished components across different materials and production requirements.

Bwin VBMT Carbide Turning Inserts Specification:

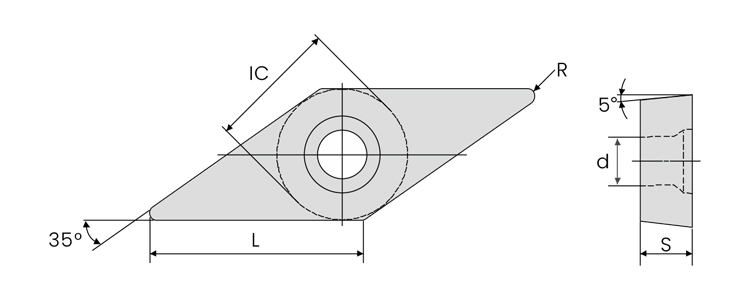

bwin VBMT160404 VBMT160408 carbide turning insert

Model L IC S d R
VBMT110302 11 6.35 3.18 2.8 0.2
VBMT110304 11 6.35 3.18 2.8 0.4
VBMT110308 11 6.35 3.18 2.8 0.8
VBMT160404 16.5 9.525 4.76 4.2 0.4
VBMT160408 16.5 9.525 4.76 4.2 0.8

Bwin Grade for Carbide Inserts:

Grade Coating Color Workpiece material Application
BP020 CVD Yellow P10-P20 Suitable for semi-finishing to finishing machining of soft steel.
BP025 CVD Black P25-P35 Preferred grade for semi-finishing to finishing steel machining.
BP030 CVD Yellow P25-P35 BP030 is an upgraded version of BP020, Suitable for intermittent cutting of steel.
BP050 CVD Two-color P35-P45 It is suitable for turning of various steels and is the first choice for wear resistance.
BP070 CVD Colorful P40-P65 Suitable for hardened steel and difficult to machine materials
BM035 PVD Dark Purple M10-M30 Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling.
BM055 PVD Purple Gold M15-M35 Preferred grade for steel and stainless milling and drilling.
BM085 PVD Colorful M30-M55
S15-S40
H15-H55
Suitable for difficult to machine materials such as nickel alloys, chromium alloys, etc
BN01 Uncoated Silver Suitable for processing non-ferrous metals such as copper and aluminum alloys.
BT015 PVD Dark Gray P20-P30
K10-K30
Suitable for steel and cast iron slight milling.
BT030 PVD Dark purple P10-P25
M15-M35
Suitable for steel and stainless steel continue turning and threading.
BT065 PVD Yellow P10-P20 Good at steel semi-finishing turning, parting and grooving processing, preferred grade for steel milling and drilling.
BK115 CVD Black K15-K30 Suitable grade for semi-finishing to slight interrupted cast iron machining.
BC060 Uncoated Silver P30-P40 Suitable for processing variou steel parts and cast iron.
BC075 Uncoated Black P40-P50 Suitable for processing hardenedsteel and cast iron.
BC090 Uncoated Yellow P40-P50 Suitable for processing hardenedsteel and cast iron.
Notes: Bwin offers a wide variety of high-quality CNC spare parts, including carbide end mills, carbide inserts, turning bar tools, face milling tools, hole drilling tools, thread tapping tools, carbide burrs, tool holders, machine vises, live centers, chucks, CNC angle heads, carbide saw blades, clamping kits, as well as brand-name carbide inserts.
In addition, we provide the best parts support to keep your machines and business running smoothly.
