2 Flute End Mill | Carbide Flat End Mill for CNC Milling

  • Brand: Bwin
  • Customized Support: OEM, ODM
  • Material: Solid carbide
  • Flutes: 4 flute, 2 flutes
  • Coated: TiSiN, TiAlN (nano black), AlTiSiN (nano blue)
  • Cutting Diameter (mm): 0.1mm-20mm
  • Shank Diameter (mm): 4mm-20mm
  • Flute Length (mm): 3mm-70mm
  • Overall Diameter (mm): 50mm-150mm
  • Helix Angle: 35 degree
  • End Style: Standard
  • Package: 1pcs/plastic pipe
  • Suitable for: Carbon steel, alloy steel, stainless steel, cast iron
Request a quote
Categories: , Tags: , , ,

2 Flute Flat End Mill:

First, HRC55 2 flute end mill machines carbon steel, alloy steel, and also cast iron in CNC milling operations. Moreover, its center cutting geometry handles slotting, side milling, profile milling, as well as plunge cutting with one tool. In addition, the carbide cutting edges maintain stable chip removal. Likewise, they support continuous machining on machining centers and CNC milling machines. Furthermore, the tool fits standard ER collet holders and hydraulic tool holders used in industrial machining.
Secondly, the square end mill 2 flute design forms flat-bottom slots and square shoulders without changing tools. At the same time, the 2 flute slotting end mill clears chips through wide flute spaces. As a result, cutting stability remains strong during deep slot machining. In addition, the carbide flat end mill supports roughing and finish milling on the same workpiece. Consequently, manufacturers reduce tool changes. Most importantly, they simplify machining processes across multiple operations.
Thirdly, the 2 flute flat end mill is available in common diameters. For example, the flat end mill 6mm size serves general machining. Because of this, manufacturers can use this CNC end mill for molds, machine parts, fixtures, steel components, and also cast iron workpieces. Ultimately, whether the application requires slot drilling, profile milling, or contour machining, this slot drill delivers repeatable cutting performance and consistent dimensional accuracy throughout production.

HRC55 HRC60 HRC65  Carbide square end mills specifications:

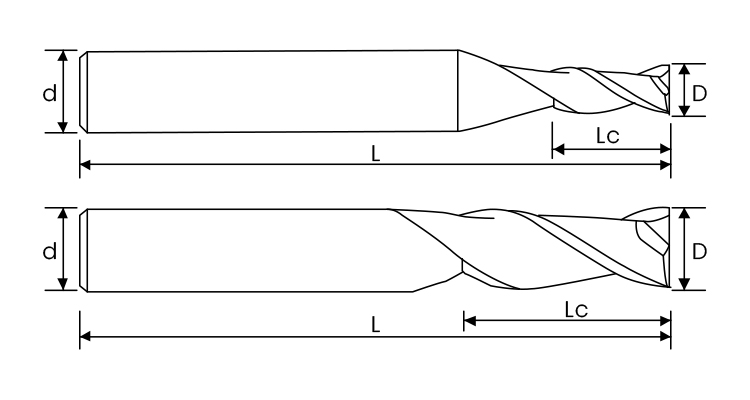

2 flute end mill hrc55 demension square end mill flat end mill

Model Cutting Dia.(D) FLute Length(Lc) Shank Dia.(d) Overall Length(L) Flutes
1*3*4*50 1 3 4 50 2
1.5*4*4*50 1.5 4 4 50 2
2*5*4*50 2 5 4 50 2
2.5*7*4*50 2.5 7 4 50 2
3*8*4*50 3 8 4 50 2
3.5*10*4*50 3.5 10 4 50 2
4*10*4*50 4 10 4 50 2
4*16*4*75 4 16 4 75 2
4*20*4*100 4 20 4 100 2
5*13*5*50 5 13 5 50 2
5*20*5*75 5 20 5 75 2
5*25*5*100 5 25 5 100 2
1*3*6*50 1 3 6 50 2
1.5*4*6*50 1.5 4 6 50 2
2*5*6*50 2 5 6 50 2
2.5*7*6*50 2.5 7 6 50 2
3*8*6*50 3 8 6 50 2
3.5*10*6*50 3.5 10 6 50 2
4*10*6*50 4 10 6 50 2
4.5*12*6*50 4.5 12 6 50 2
5*13*6*50 5 13 6 50 2
6*15*6*50 6 15 6 50 2
6*25*6*75 6 25 6 75 2
6*30*6*100 6 30 6 100 2
6*40*6*150 6 40 6 150 2
7*18*8*60 7 18 8 60 2
8*20*8*60 8 20 8 60 2
8*25*8*75 8 25 8 75 2
8*35*8*100 8 35 8 100 2
8*50*8*150 8 50 8 150 2
9*23*10*75 9 23 10 75 2
10*25*10*75 10 25 10 75 2
10*40*10*100 10 40 10 100 2
10*50*10*150 10 50 10 150 2
11*28*12*75 11 28 12 75 2
12*30*12*75 12 30 12 75 2
12*45*12*100 12 45 12 100 2
12*60*12*150 12 60 12 150 2
14*45*14*100 14 45 14 100 2
14*60*14*150 14 60 14 150 2
16*45*16*100 16 45 16 100 2
16*60*16*150 16 60 16 150 2
18*45*18*100 18 45 18 100 2
18*70*18*150 18 70 18 150 2
20*45*20*100 20 45 20 100 2
20*70*20*150 20 70 20 150 2
Note: We offer full customization for all specs. For more information, please contact us at any time.
