Carbide 2 Flute Ball Nose End Mill | Spherical End Mill for Steel & Stainless Steel
- Brand: Bwin
- Customized Support: OEM, ODM
- Material: Solid carbide
- Flutes: 2

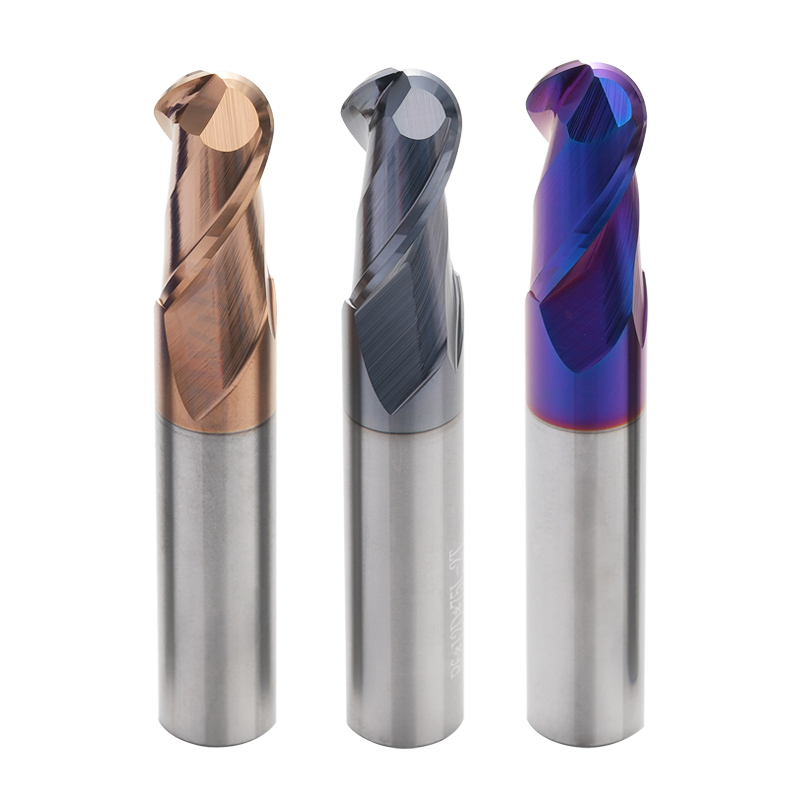

- Coated: TiSiN, TiAlN (nano black), AlTiSiN (nano blue)
- Cutting Radius (mm): R0.5mm-R10mm
- Shank Diameter (mm): 4mm-20mm
- Flute Length (mm): 2mm-50mm
- Overall Diameter (mm): 50mm-150mm
- Helix Angle: 30 degree
- End Style: Standard
- Package: 1pcs/plastic pipe
- Suitable for: Carbon steel, alloy steel, stainless steel, cast iron
The 2 flute ball nose end mill provide excellent performance in complex machining tasks. This carbide ball nose end mill allows operators to achieve accurate 3D profiling and fine surface finishes. It works efficiently on carbon steel, alloy steel, stainless steel, and cast iron.
Moreover, the spherical end mill design improves chip evacuation and reduces cutting resistance. As a result, the tool maintains stability during high-speed operations. Many machinists use this ball nose milling cutter as a reliable contouring mill for mold and die applications. It also functions as a copy milling cutter when replicating detailed shapes.
In addition, this ball end mill enhances surface quality during finishing processes. The 2 flute ball nose geometry supports smooth tool paths and consistent cutting results. Whether you need a 3D profiling cutter or a surface finishing mill, this tool delivers precision and durability for demanding CNC machining environments.

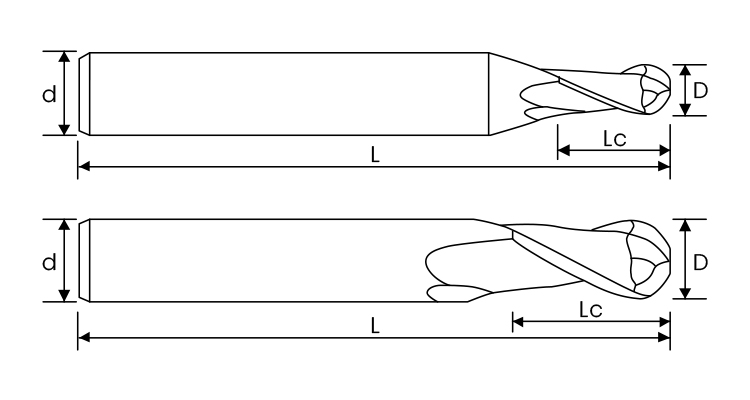

Specifications of Carbide 2 flute Ball Nose Milling Cutter:
| Model | Cutting Radius | Flute Length | Shank Dia. | Overall Length | Flutes |
| R0.5*2*4*50 | 0.5 | 2 | 4 | 50 | 2 |
| R0.75*3*4*50 | 0.75 | 3 | 4 | 50 | 2 |
| R1*4*4*50 | 1 | 4 | 4 | 50 | 2 |
| R1.25*5*4*50 | 1.25 | 5 | 4 | 50 | 2 |
| R1.5*6*4*50 | 1.5 | 6 | 4 | 50 | 2 |
| R1.75*7*4*50 | 1.75 | 7 | 4 | 50 | 2 |
| R2*8*4*50 | 2 | 8 | 4 | 50 | 2 |
| R2*8*4*75 | 2 | 8 | 4 | 75 | 2 |
| R2*8*4*100 | 2 | 8 | 4 | 100 | 2 |
| R2.5*10*5*50 | 2.5 | 10 | 5 | 50 | 2 |
| R2.5*10*5*75 | 2.5 | 10 | 5 | 75 | 2 |
| R2.5*10*5*100 | 2.5 | 10 | 5 | 100 | 2 |
| R3*12*6*50 | 3 | 12 | 6 | 50 | 2 |
| R3*12*6*75 | 3 | 12 | 6 | 75 | 2 |
| R3*12*6*100 | 3 | 12 | 6 | 100 | 2 |
| R3*12*6*150 | 3 | 12 | 6 | 150 | 2 |
| R3.5*14*8*60 | 3.5 | 14 | 8 | 60 | 2 |
| R4*16*8*60 | 4 | 16 | 8 | 60 | 2 |
| R4*16*8*75 | 8 | 16 | 8 | 75 | 2 |
| R4*16*8*100 | 4 | 16 | 8 | 100 | 2 |
| R4*16*8*150 | 4 | 16 | 8 | 150 | 2 |
| R4.5*18*10*75 | 4.5 | 18 | 10 | 75 | 2 |
| R5*20*10*75 | 5 | 20 | 10 | 75 | 2 |
| R5*20*10*100 | 5 | 20 | 10 | 100 | 2 |
| R5*20*10*150 | 5 | 20 | 10 | 150 | 2 |
| R5.5*22*12*75 | 5.5 | 22 | 12 | 75 | 2 |
| R6*24*12*75 | 6 | 24 | 12 | 75 | 2 |
| R6*24*12*100 | 6 | 24 | 12 | 100 | 2 |
| R6*24*12*150 | 6 | 24 | 12 | 150 | 2 |
| R7*28*14*100 | 7 | 28 | 14 | 100 | 2 |
| R7*28*14*150 | 7 | 28 | 14 | 150 | 2 |
| R8*32*16*100 | 8 | 32 | 16 | 100 | 2 |
| R8*32*16*150 | 8 | 32 | 16 | 150 | 2 |
| R9*36*18*100 | 9 | 36 | 18 | 100 | 2 |
| R9*36*18*150 | 9 | 36 | 18 | 150 | 2 |
| R10*40*20*100 | 10 | 40 | 20 | 100 | 2 |
| R10*40*20*150 | 10 | 40 | 20 | 150 | 2 |
