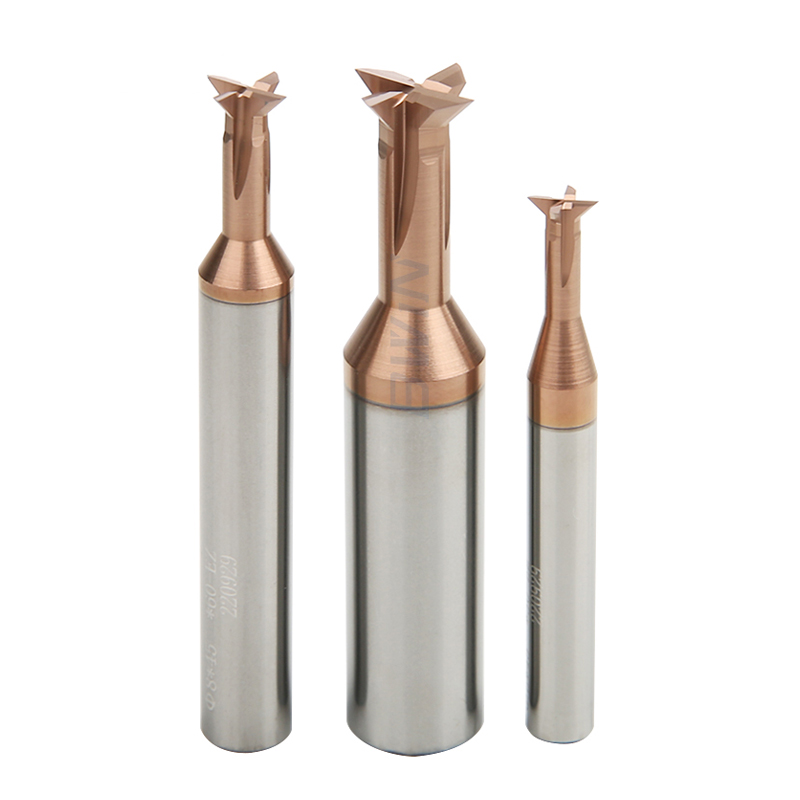

Carbide Dovetail Cutters for Precision Dovetail Milling
- Brand: Bwin
- Customized Support: OEM, ODM
- Material: Tungsten carbide
- Flute: 4 Flute
- Coated: TiSiN
- Cutting Diameter (mm): 3mm-20mm
- Deep Neck Diameter (mm): 1.5mm-10mm
- Shank Diameter (mm): 5mm-20mm
- Overall Diameter (mm): 50mm, 60mm, 75mm
- End Style: Standard
- Package: 1pcs/plastic pipe
- Suitable for: Carbon steel, alloy steel, cast iron, aluminum, copper
These carbide dovetail milling cutters provide high rigidity and reliable cutting performance for dovetail slot machining. The solid carbide structure improves wear resistance and ensures stable operation when machining alloy steel , carbon steel, aluminum and copper etc. Sharp cutting edges help achieve smooth surfaces, accurate angles, and consistent results in CNC milling applications.

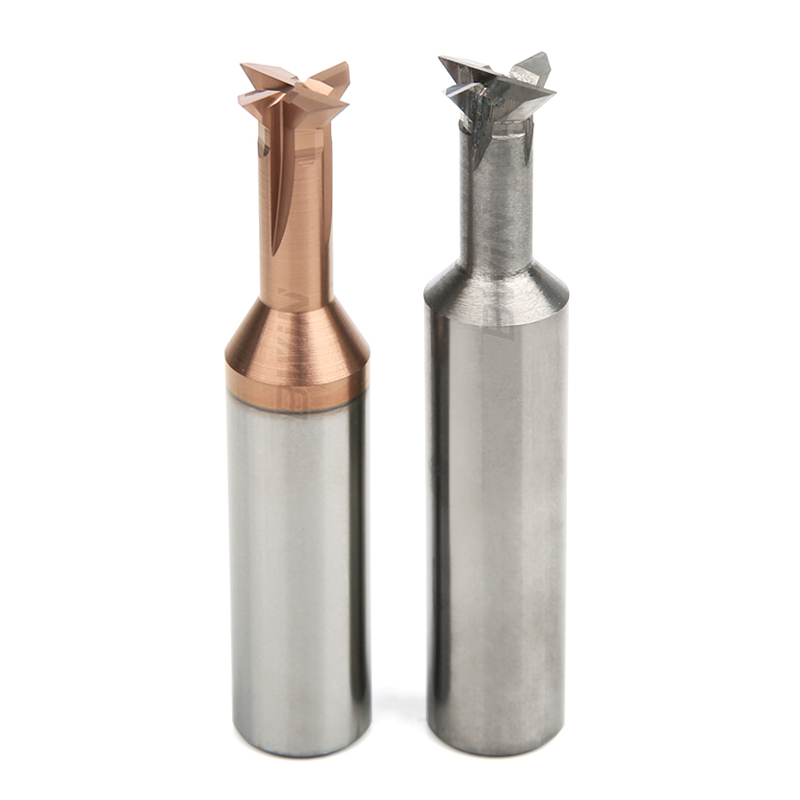

Browse from three included angles, and choose between uncoated or TiSiN coated styles.

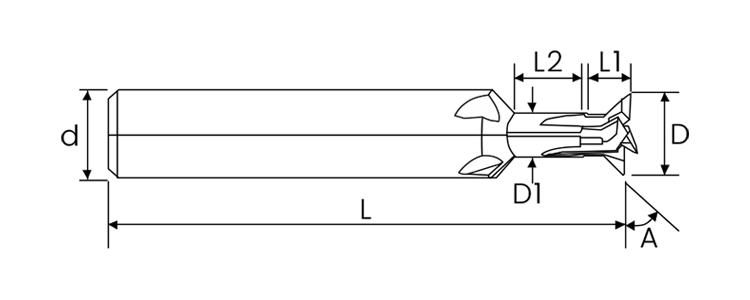

| Cutting Dia.(D) | Angle(A) | Deep Neck Dia.(D1) | Deep Neck(L2) | Blade Height(L1) | Shank Dia.(d) | Overall Length(L) | Flutes |
| 3 | 45° | 1.5 | 5 | 0.7 | 3 | 50 | 4 |
| 4 | 45° | 2 | 6 | 1 | 4 | 50 | 4 |
| 5 | 45° | 2.5 | 8 | 1.2 | 5 | 50 | 4 |
| 6 | 45° | 3 | 8 | 1.5 | 6 | 50 | 4 |
| 7 | 45° | 3.5 | 10 | 1.7 | 7 | 60 | 4 |
| 8 | 45° | 4 | 10 | 2 | 8 | 60 | 4 |
| 9 | 45° | 4.5 | 15 | 2.2 | 9 | 60 | 4 |
| 10 | 45° | 5 | 15 | 2.5 | 10 | 60 | 4 |
| 11 | 45° | 5.5 | 15 | 2.7 | 11 | 60 | 4 |
| 12 | 45° | 6 | 15 | 3 | 12 | 60 | 4 |
| 14 | 45° | 7 | 20 | 3.5 | 14 | 65 | 4 |
| 16 | 45° | 8 | 20 | 4 | 16 | 65 | 4 |
| 20 | 45° | 10 | 25 | 5 | 20 | 75 | 4 |
| 3 | 60° | 1.5 | 5 | 1.4 | 3 | 50 | 4 |
| 4 | 60° | 2 | 6 | 1.7 | 4 | 50 | 4 |
| 5 | 60° | 2.5 | 8 | 2.1 | 5 | 50 | 4 |
| 6 | 60° | 3 | 8 | 2.6 | 6 | 50 | 4 |
| 7 | 60° | 3.5 | 10 | 3 | 7 | 60 | 4 |
| 8 | 60° | 4 | 10 | 3.4 | 8 | 60 | 4 |
| 9 | 60° | 4.5 | 15 | 3.8 | 9 | 60 | 4 |
| 10 | 60° | 5 | 15 | 4.3 | 10 | 60 | 4 |
| 11 | 60° | 5.5 | 15 | 4.7 | 11 | 60 | 4 |
| 12 | 60° | 6 | 15 | 5.2 | 12 | 60 | 4 |
| 14 | 60° | 7 | 20 | 6.1 | 14 | 65 | 4 |
| 16 | 60° | 8 | 20 | 6.9 | 16 | 65 | 4 |
| 20 | 60° | 10 | 25 | 8.6 | 20 | 75 | 4 |
| 3 | 75° | 1.5 | 5 | 2.7 | 3 | 50 | 4 |
| 4 | 75° | 2 | 6 | 3.7 | 4 | 50 | 4 |
| 5 | 75° | 2.5 | 8 | 4.6 | 5 | 50 | 4 |
| 6 | 75° | 3 | 8 | 5.5 | 6 | 50 | 4 |
| 7 | 75° | 3.5 | 10 | 6.5 | 7 | 60 | 4 |
| 8 | 75° | 4 | 10 | 7.4 | 8 | 60 | 4 |
| 9 | 75° | 4.5 | 15 | 8.3 | 9 | 60 | 4 |
| 10 | 75° | 5 | 15 | 9.3 | 10 | 60 | 4 |
| 11 | 75° | 5.5 | 15 | 10.2 | 11 | 60 | 4 |
| 12 | 75° | 6 | 15 | 11.1 | 12 | 60 | 4 |
| 14 | 75° | 7 | 20 | 13 | 14 | 65 | 4 |
| 16 | 75° | 8 | 20 | 14.9 | 16 | 65 | 4 |
| 20 | 75° | 10 | 25 | 18.6 | 20 | 75 | 4 |
