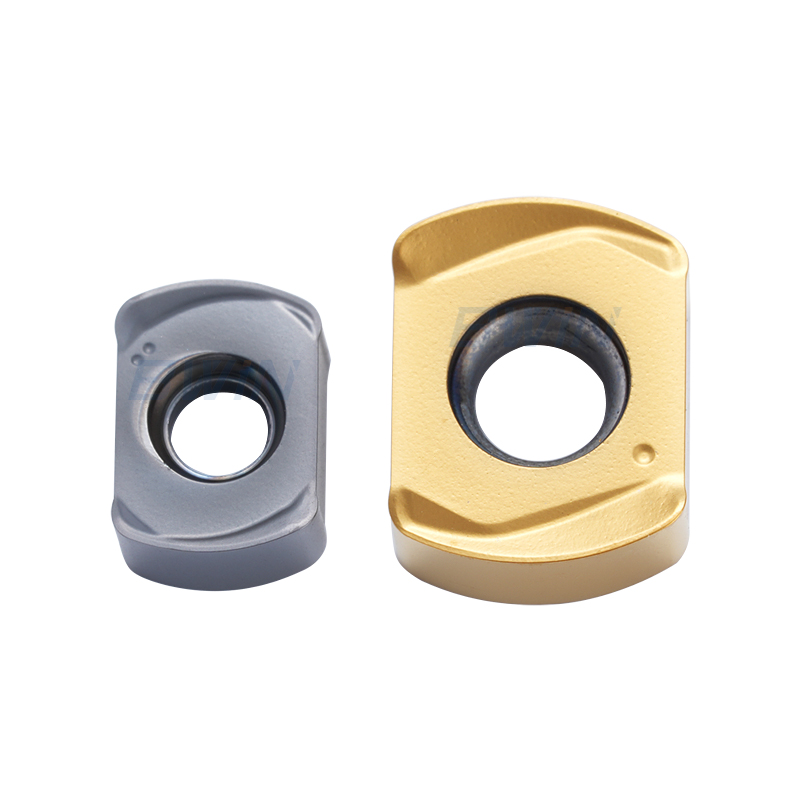

BLMP0603R-M Carbide Milling Insert | BLMP Insert for Steel, Stainless Steel and Cast Iron
- Brand: Bwin
- Material: Solid carbide
- Insert Style: BLMP
- Insert Grade: BT015, BT065
- Cleanrance Angle:
- Package: 10pcs/box
- Machining Parts Material: Carbon steel, alloy steel, stainless steel, cast iron.
- Country of Origin: China
BLMP Style High Feed Milling Insert

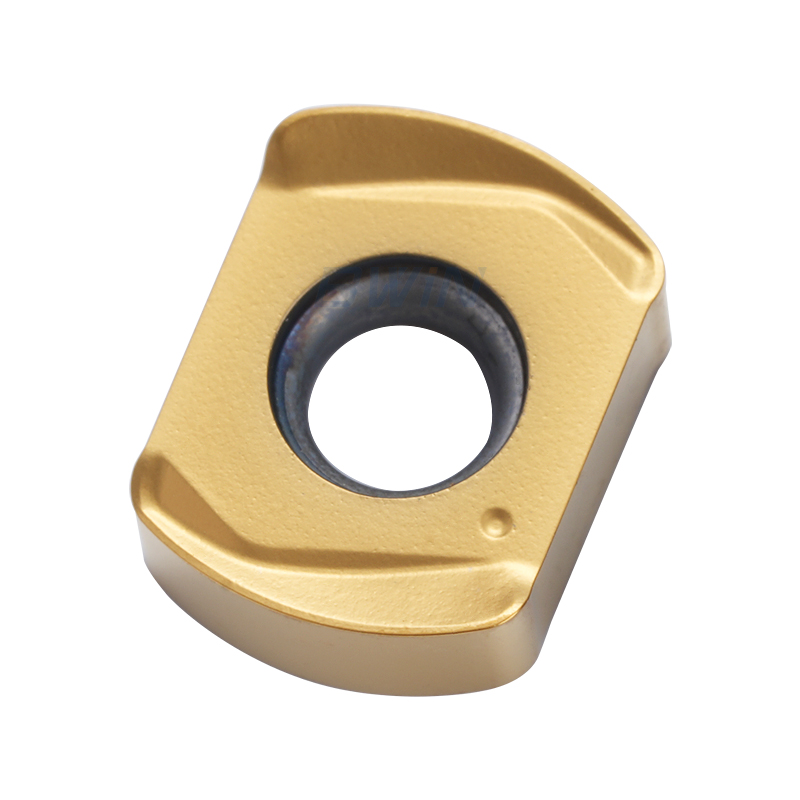

The BLMP 0603R-M carbide milling insert machines carbon steel, alloy steel, stainless steel, and cast iron in CNC milling applications. The carbide substrate resists abrasive wear and supports continuous cutting during face milling and shoulder milling. The insert controls chip flow, maintains cutting edge stability, and helps operators achieve repeatable machining results across different workpiece materials.
Moreover, the BLMP insert reduces cutting resistance and improves chip evacuation during every cutting pass. Additionally, the insert supports both rough milling and finish milling with compatible tool holders. Furthermore, the cutting geometry distributes cutting loads evenly across the edge, which helps reduce edge chipping during continuous machining. Consequently, manufacturers can improve machining consistency while reducing insert replacement frequency.
In addition, the BLMP 0603R-M insert integrates with standard BLMP cutter bodies used in CNC machining centers. Therefore, manufacturers can use the same insert platform for multiple milling operations and different steel materials. The BLMP carbide insert also provides an alternative to BLMP0904 (BLMP0904R, and BLMP0904R-M) insert series when the cutter design requires the BLMP0603 size. As a result, the BLMP milling insert offers an efficient solution for general steel machining and production environments.

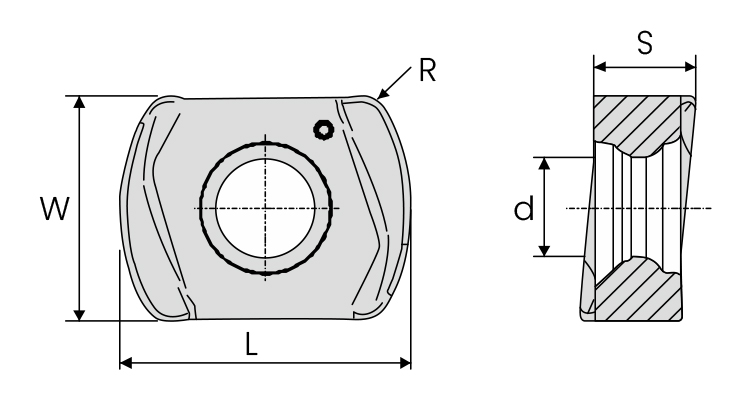

BWIN BLMP Inserts Specification:
| Model | L | IC | S | d | r |
| BLMP0603R-M | 6.5 | 6.4 | 3.42 | 3.2 | 1.0 |
| BLMP0904R-M | 9.5 | 9.2 | 4.11 | 4.15 | 1.2 |
Bwin Grade for Carbide Inserts:
| Grade | Coating | Color | Workpiece material | Application |
| BP020 | CVD | Yellow | P10-P20 | Ideal for semi-finishing through to finishing of mild steel. |
| BP025 | CVD | Black | P25-P35 | Ideal for machining quenched and tempered steel |
| BP030 | CVD | Yellow | P25-P35 | BP030 is the advanced upgrade of BP020; specifically engineered for interrupted steel cutting. |
| BP050 | CVD | Two-color | P35-P45 | Optimized for turning various steels; the premier choice for superior wear resistance. |
| BP070 | CVD | Colorful | P15-P40
H10-H30 |
Suitable for hardened steel and difficult-to-machine materials. |
| BM035 | PVD | Dark Purple | M10-M30 | Excels in stainless semi-finishing and grooving; the premier grade for steel and stainless milling/drilling. |
| BM055 | PVD | Purple Gold | M15-M35 | The premier grade for versatile steel and stainless milling and drilling. |
| BM085 | PVD | Colorful | M10-M30 S15-S30 H10-H25 |
Ideal for difficult-to-machine materials such as nickel and chromium alloys, etc. |
| BN01 | Uncoated | Silver | Designed for processing non-ferrous metals, including copper and aluminum alloys. | |
| BT015 | PVD | Dark Gray | P20-P30 K10-K30 |
Optimized for light milling of both steel and cast iron. |
| BT030 | PVD | Light Purple | P10-P25 M15-M35 |
Ideal for continuous turning and threading of steel and stainless steel. |
| BT065 | PVD | Golden Yellow | P10-P20 | Excels in steel semi-finishing and grooving; the premier grade for steel milling and drilling. |
| BK115 | CVD | Black | K15-K30 | The ideal grade for cast iron semi-finishing and lightly interrupted cutting. |
| BC060 | Uncoated | Silver | P30-P40 | Suitable for processing various steel components and cast iron. |
| BC075 | Uncoated | Black | P40-P50 | Engineered for high-performance machining of hardened steel and cast iron. |
| BC090 | Uncoated | Yellow | P40-P50 | Optimized for precision machining of hardened steel and cast iron. |
Notes:
Beyond our core range, Bwin delivers a comprehensive portfolio of high-performance CNC tooling and accessories. Furthermore, we specialize in precision-engineered carbide end mills and indexable inserts, providing robust solutions for turning, boring, face milling, and drilling. In addition, we equip your shop with essential machine accessories, ranging from high-stability tool holders and precision vises to live centers, chucks, and CNC angle heads.
To meet every unique application, we also provide specialized carbide rotary burrs, saw blades, clamping kits, and a wide array of authentic brand-name inserts. Therefore, Bwin delivers expert parts support. Moreover, we guarantee peak machine uptime so your business runs seamlessly.
