How to Choose the Right VNMG Insert for Your Steel Turning Operation？
Selecting the right cutting tool is one of the most critical decisions in CNC machining operations. Among the various options available, VNMG inserts have gained significant popularity for steel turning applications due to their versatile design and reliable performance. Whether you are a machinist seeking improved surface finishes or a procurement manager looking for cost-effective tooling solutions, understanding how to choose the right VNMG insert can dramatically impact your production efficiency and bottom line.
As an experienced carbide turning inserts manufacturer, Bwin specializes in delivering high-quality VNMG inserts that meet the demanding requirements of modern steel turning operations. In this comprehensive guide, we will walk you through the key factors to consider when selecting VNMG inserts, helping you make informed decisions for your specific machining needs.
Understanding VNMG Inserts and Their Applications

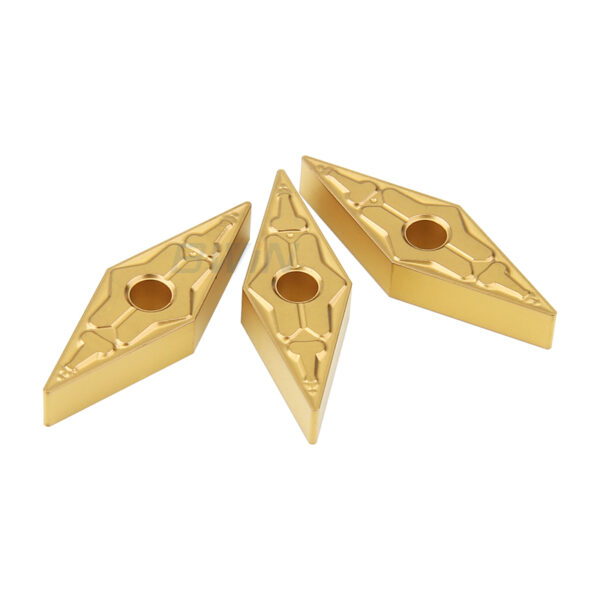

What Are VNMG Inserts?

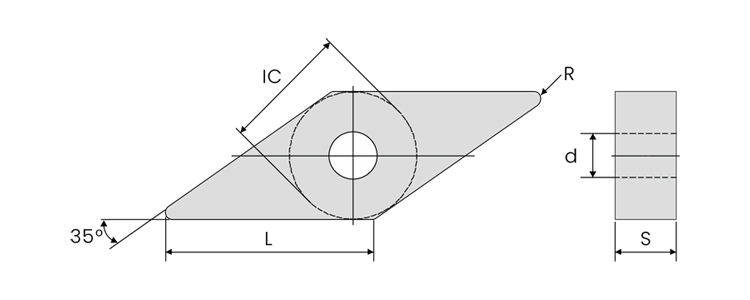

VNMG inserts are indexable cutting tools designed for turning operations on lathes and CNC machines. The “VNMG” designation follows ISO standards, where:
- V = Insert shape ( rhomboid 35°)
- N = Clearance angle
- M = Insert tolerance
- G = Chip breaker style
These inserts are available in various sizes, including VNMG160404, VNMG160408, and VNMG160412, each suited for different depths of cut and feed rates. The numerical suffix indicates the insert’s IC (inscribed circle) size and corner radius—VNMG160404 features a 4mm corner radius, while VNMG160408 has an 8mm radius, and VNMG160412 offers a 12mm radius for more aggressive cuts.
Materials They Handle
One of the standout features of VNMG inserts is their versatility across multiple materials. They work effectively across a wide range of materials, including:
- Carbon steel – The most common workpiece material in manufacturing
- Alloy steel – Used in automotive and aerospace components
- Stainless steel – Requiring specific grades for corrosion-resistant machining
- Cast iron – For industrial equipment and machinery components
Key Factors When Choosing VNMG Inserts
1. Match the Insert Size to Your Operation
Selecting the correct VNMG insert size is fundamental to achieving optimal performance. Consider these guidelines:
| Size | Corner Radius | Best Application |
|---|---|---|
| VNMG160404 | 4mm | Finishing passes, close-tolerance work |
| VNMG160408 | 8mm | General-purpose turning, medium feeds |
| VNMG160412 | 12mm | Roughing, high-material-removal operations |
The larger corner radius on VNMG160408 and VNMG160412 inserts provides greater edge strength, making them ideal for roughing operations where corner breakdown is a concern. Meanwhile, VNMG160404 offers sharper edges for finer finishes.

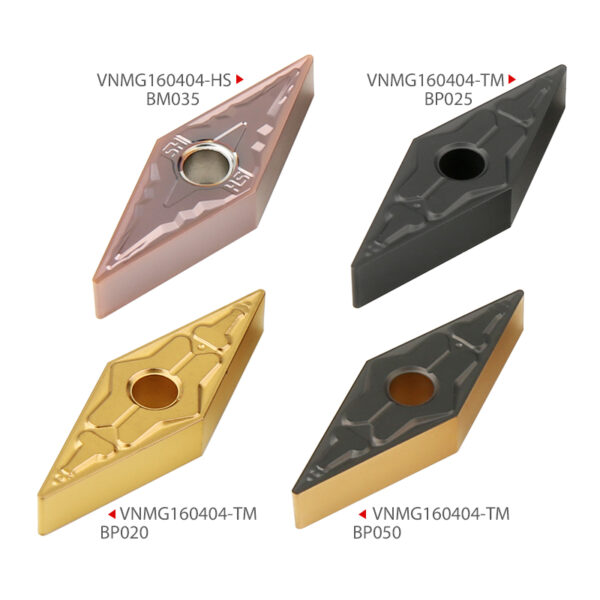

2. Choose the Right Grade for Your Material
Carbide grades determine the insert’s wear resistance and toughness. At Bwin, our carbide turning inserts supplier network offers grades specifically engineered for steel applications:
- K01-K10: High wear resistance for finishing
- P10-P30: Balanced performance for general steel turning
- P40-P50: High toughness for roughing and interrupted cuts
If you are machining stainless steel, look for grades with enhanced thermal stability to prevent built-up edge.
3. Consider Coating Options
The coating significantly impacts insert performance:
- CVD (Chemical Vapor Deposition): Excellent for continuous cutting and high-temperature applications
- PVD (Physical Vapor Deposition): Better for interrupted cuts and sharp edges
- Uncoated: Suitable for non-ferrous materials and specific applications
For steel turning, TiAlN-coated inserts deliver exceptional heat resistance and extended tool life.
4. Chip Breaker Design
VNMG inserts feature optimized geometry that improves chip evacuation and reduces cutting resistance. The chip breaker influences:
- Chip formation and control
- Cutting forces
- Surface finish quality
- Insert strength
Choose a chip breaker designed for your specific operation—roughing, finishing, or universal applications.
Why Bwin VNMG Inserts Stand Out
Precision Engineering
As a trusted carbide turning inserts manufacturer, Bwin ensures that every VNMG insert delivers high precision and stable performance in CNC turning applications. Our inserts feature sharp cutting edges that improve cutting efficiency and reduce tool wear, resulting in smoother finishes and consistent machining quality.
Enhanced Productivity
These carbide turning inserts minimize vibration and enhance overall productivity. The optimized geometry improves chip evacuation, preventing chip packing and reducing the risk of workpiece damage. This means fewer tool changes, reduced downtime, and lower tooling costs.
Versatility in Operations
VNMG inserts support both roughing and finishing operations, which allows machinists to complete multiple processes with one insert type. Because of this, users can simplify tool management and improve workflow efficiency—a crucial advantage in high-volume production environments.
Compatibility and Flexibility
These VNMG16 series inserts also offer excellent compatibility with standard tool holders. Users can choose sizes such as VNMG160404, VNMG160408, and VNMG160412 based on specific machining needs. Therefore, these VNMG inserts provide a flexible, cost-effective, and reliable solution for modern machining environments.
Practical Tips for Maximizing Insert Life
- Use correct cutting parameters – Follow manufacturer-recommended speeds and feeds
- Ensure proper coolant delivery – Coolant reduces heat and extends tool life
- Inspect inserts regularly – Check for wear before it affects workpiece quality
- Match holder to insert – Proper clamping ensures consistent performance
Conclusion：
Choosing the right VNMG insert for your steel turning operation requires careful consideration of multiple factors: insert size, grade, coating, chip breaker design, and application requirements. By understanding these elements and partnering with a reliable carbide turning inserts supplier, you can optimize your machining operations, achieve superior surface finishes, and maximize productivity.
Bwin’s VNMG inserts combine precision engineering with versatile performance, making them an excellent choice for manufacturers seeking quality and value. Whether you need VNMG160404 for precision work or VNMG160412 for heavy roughing, we have the right solution for your needs.
Ready to upgrade your steel turning operations? Contact Bwin today for expert guidance and premium carbide turning inserts!
