How Can a U Drill Carbide Insert Improve CNC Drilling Efficiency?

In modern CNC machining, efficiency, precision, and tool longevity are critical for productivity and cost management. One key solution that addresses these needs is the U drill carbide insert. Used across various industrial sectors, this tool is particularly effective for drilling tough materials like carbon steel, stainless steel, and hardened alloys.

Understanding the U Drill Carbide Insert

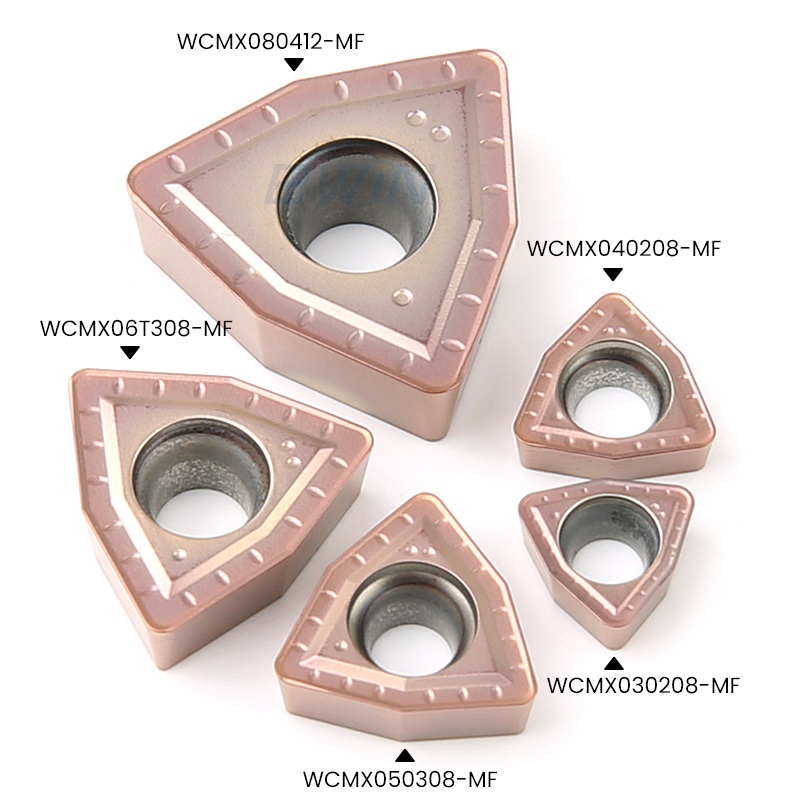

The U drill carbide insert is a precision-engineered cutting tool component made from tungsten carbide, known for its exceptional hardness and wear resistance. Specifically, the Bwin brand offers inserts with the following specifications:

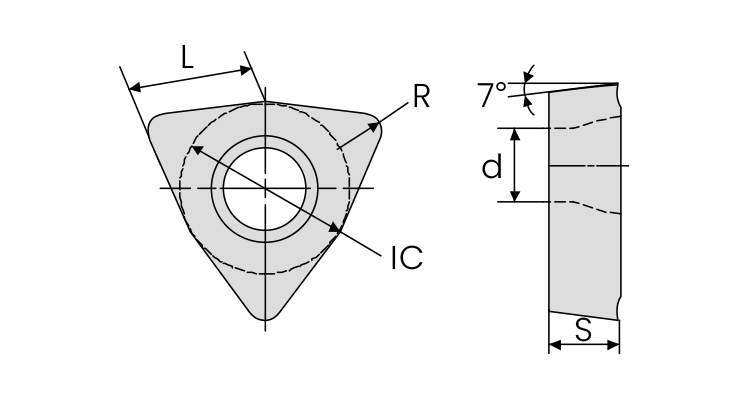

• Insert Style: WCMX

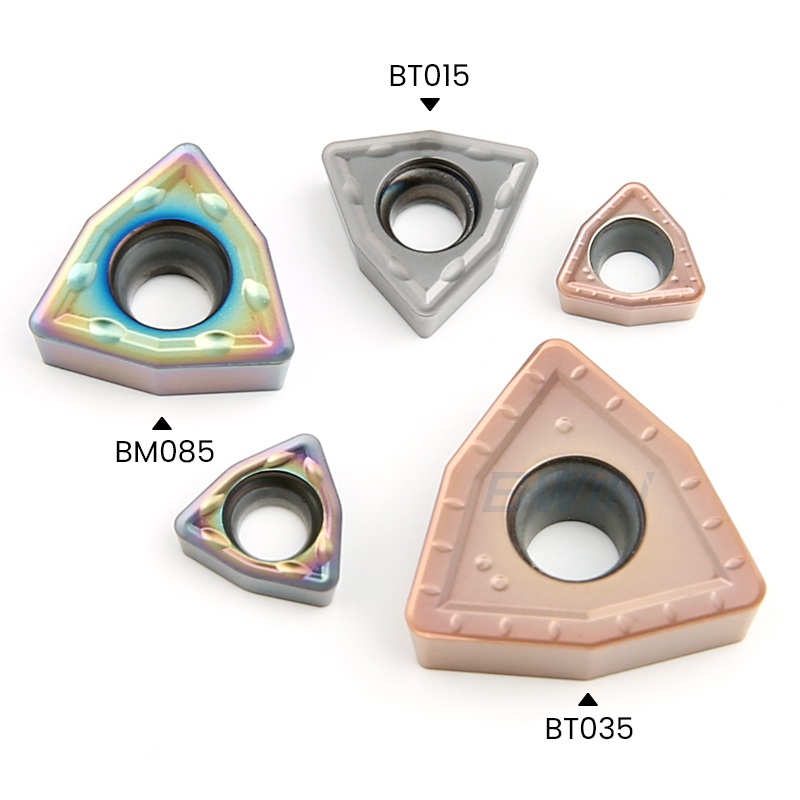

• Insert Grades: BT015, BM035, BM085
• Chip Breaker Options: MF, SF
• Package: 10pcs/box
• Applicable Materials: Carbon steel, alloy steel, stainless steel, cast iron, mould steel, hardened steel, etc.

These inserts are designed for use in CNC drilling machines, particularly in industrial applications where high-speed drilling and precision are essential.

Advantages of Using U Drill Carbide Inserts

1. Increased Drilling Efficiency

Compared to conventional drill bits, a precision carbide U drill insert allows for faster drilling speeds and higher feed rates. The tungsten carbide material retains sharpness under high temperatures, reducing the need for frequent tool changes. This efficiency translates directly into higher throughput and reduced production downtime.

2. Superior Material Compatibility

A carbide drill insert for steel is specifically designed to handle tough and abrasive materials. Whether working with hardened steel or stainless alloys, these inserts maintain consistent cutting performance, reducing the risk of tool wear or workpiece damage.

3. Improved Accuracy and Surface Finish

Precision is a hallmark of U drill carbide inserts. Their stable geometry and optimized chip breakers (MF or SF) ensure smooth chip evacuation, minimizing vibration and deflection during drilling. This results in highly accurate holes with excellent surface quality.

4. Cost-Effective Tooling

Although tungsten carbide inserts may have a higher upfront cost, their durability and extended lifespan reduce the frequency of replacements. With packages of 10pcs/box, industries can maintain efficient inventory management while minimizing operational costs.

5. Versatility in Applications

U drill carbide inserts are highly versatile. The WCMX insert style combined with multiple grade options (BT015, BM035, BM085) allows machinists to select the optimal tool for varying workpiece materials and cutting conditions, from soft carbon steel to hardened mould steel.

Best Practices for Maximizing CNC Drilling Efficiency

1. Select the Right Insert Grade:
   • BT015 for general-purpose drilling in carbon steel and alloy steel
   • BM035 for tougher materials like stainless steel
   • BM085 for hardened steels and cast iron
2. Optimize Spindle Speed and Feed Rate: Adjust CNC parameters to match the insert’s recommended cutting conditions.
3. Use Proper Cooling and Lubrication: Tungsten carbide handles heat well, but adequate coolant reduces thermal stress and extends insert life.
4. Monitor Chip Evacuation: Choose between MF (medium chip breaker) and SF (small chip breaker) inserts depending on material and hole depth to prevent clogging.

Conclusion:

Integrating U drill carbide inserts into CNC drilling operations can dramatically improve efficiency, precision, and cost-effectiveness. With Bwin’s precision carbide U drill insert, manufacturers can achieve faster cycle times, superior hole quality, and reliable performance across a wide range of materials. For industries dealing with carbon steel, stainless steel, or hardened alloys, upgrading to carbide inserts is a strategic investment in both productivity and product quality.
